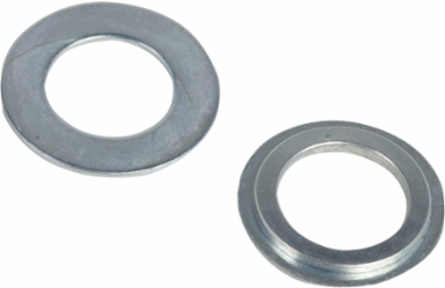

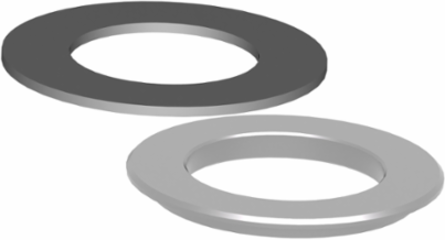

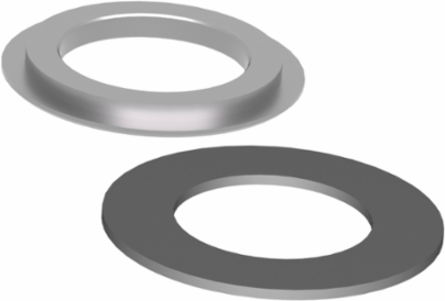

Schneider Electric ZBZ41 Harmony XB4/XB5 22mm to 30mm Socket Adaptor, Set of 10
- MPN: ZBZ41
- UPC: 785901608097
- PPN: SCH-ZBZ41
CAD
$11.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
XB4/ZB4 and XB5/ZB5 22mm push buttons are for industrial applications. This adaptor is used to mount 22mm operators into a 30mm hole. Adaptors are bulk packaged in quantities of 10. "It weighs 0.008kg." "It is sold in sets of 10." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
Features
- The Schneider Electric ZBZ41 is an industrial-grade socket adapter engineered specifically to mount standard 22mm control operators into existing 30mm diameter panel openings or knockouts. This eliminates the costly and time-consuming need to replace old enclosure doors or use custom-fabricated plates when upgrading legacy infrastructure to modern, standardized 22mm components.
- This high-precision adapter features seamless native physical integration with the premier Schneider Electric Harmony XB4 (metal) and Harmony XB5 (plastic) series, including pushbuttons, selector switches, pilot lights, and biometric switches. It ensures an identical flush fit and excellent mechanical alignment with the operator head, protecting the internal switching contact blocks from rotational stress.
- Designed for high-velocity panel building and rapid field retrofits, the adapter features a simple, snap-on direct mount architecture requiring no specialized tools or complex hardware. The streamlined mounting profile allows a single technician to quickly secure the 22mm operator into a 30mm knockout, slashing installation labor costs and minimizes machinery downtime.
