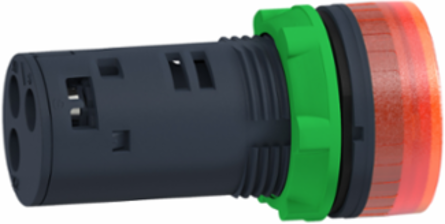

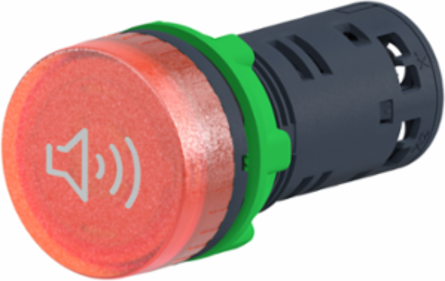

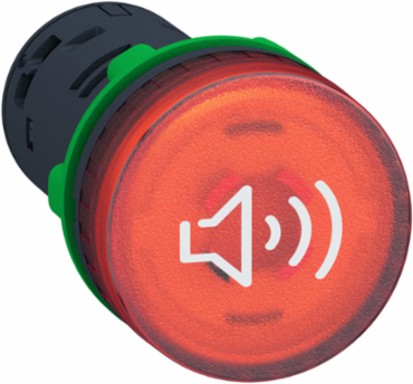

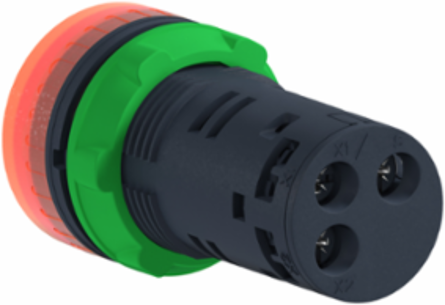

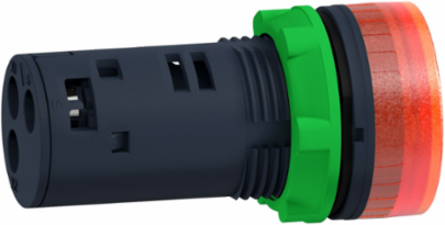

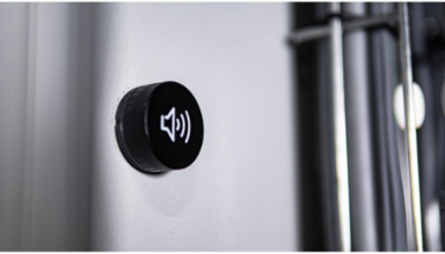

Schneider Electric XB5KS2M4 Harmony XB5 Annunciator, 22mm, Red Plastic, 230...240V AC, 90 dB
- MPN: XB5KS2M4
- PPN: SCH-XB5KS2M4
CAD
$105.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Product Or Component Type
- annunciator
- Bezel Material
- plastic
Mounting Diameter22 mm
Cap/Operator Or Lens Colourred
Complementary
- [Us] Rated Supply Voltage
- 230...240 V +/- 10 %
- Net Weight
- 0.024 kg
- Resistance To High Pressure Washer
- 9000000 Pa 80 °C 0.1 m

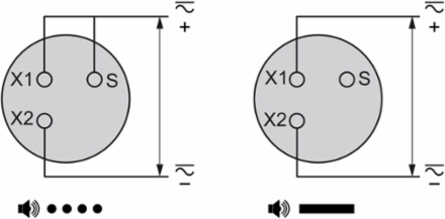

- Signalling Type
- continuous or intermittent tone

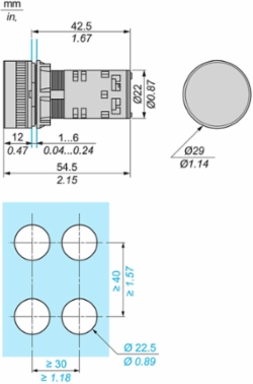

- Width
- 29 mm
- Supply Frequency
- 50/60 Hz
Height29 mm
Current Consumption<= 35 mA
Noise Level90 dB 6.8 kHz 0.1 m +/- 10 %
Supply Circuit TypeAC
Depth55 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Environment
- Product Certifications
- UL listed || CSA || BV
- Standards
- CSA C22.2 No 14 || IEC 60947-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1 || IEC 60529 || IEC 62262 || IEC 50102
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
Ambient Air Temperature For Operation-40-70 °C
Nema Degree Of ProtectionNEMA 4X || NEMA 13
Overvoltage Categoryclass II IEC 60536
