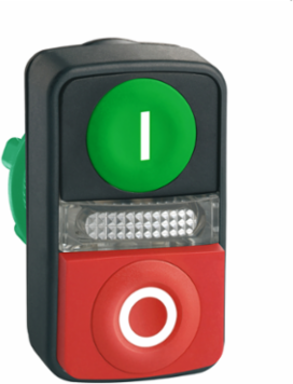

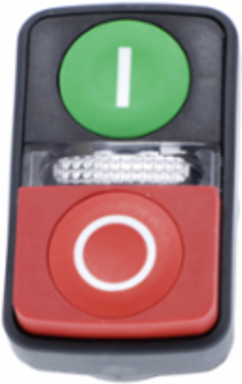

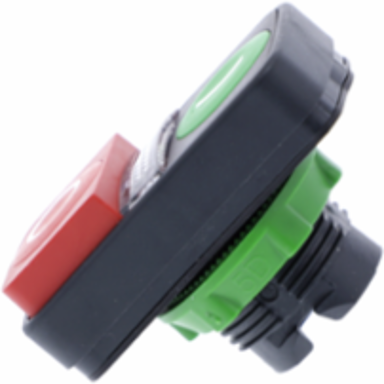

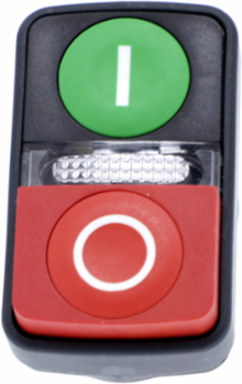

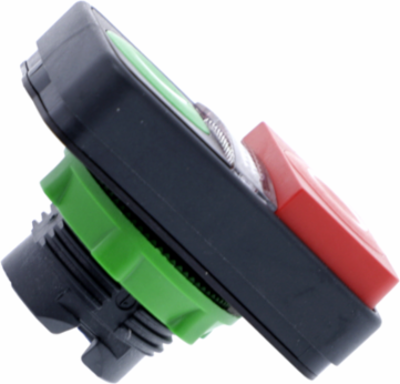

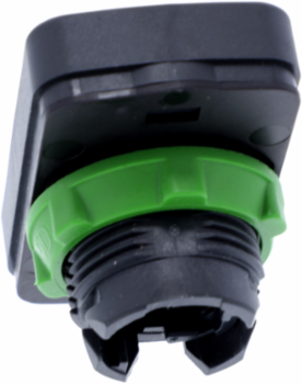

Schneider Electric ZB5AW7L3741 Harmony XB5 Illuminated Double Head Push Button 22mm, IP66/IP69K, Spring Return
- MPN: ZB5AW7L3741
- PPN: SCH-ZB5AW7L3741
CAD
$57.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5, double head has a 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Physical Attributes

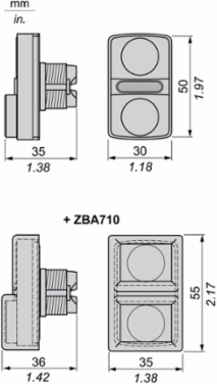

- Cad Overall Depth
- 35 mm
- Cad Overall Width
- 30 mm
Cad Overall Height50 mm
Color Of Markingwhite/white
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Operator Profile
- green flush, I white), red projecting, O white), 1 flush - 1 projecting push-buttons - 1 central pilot light
- Operator Profile 1 Cap Operator Or Lens Color
- red
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0066298217468805706, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0063752228163992865, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Future Imap
- 24.45
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 16 %
- Compatibility Code
- ZB5
- Electrical Shock Protection Class
- class II conforming to IEC 60536
- Head Type
- standard
- Marking
- I-O
- Mounting Diameter
- 22 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Shape Of Signaling Unit Head
- rectangular
- Station Name
- XALD 1 cut-out
- Total Lifecycle Carbon Footprint
- 0.2 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Operator Profile 1 Marking
- O
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Cap/Operator Or Lens Colour
- green/red
- Package Weight(Lbs)
- 26.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeM1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.05316648841354723
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.1603235294117647
Local Data StatusPublishable
Return IndicatorY
Future Msrp31.65
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404014EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content29 %
Bezel Materialdark grey plastic
Device Short NameZB5
Group Of Productflush/proj illum marked
Main Groupillum double head
Mechanical Durability1000000 cycles
Operators Descriptiongreen ''I'' - red ''O''
Product Or Component Typehead for illuminated double-headed push-button
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Sustainable PackagingYes
Type Of Operatorspring return
Color Of Markingwhite/white
Pep CodeENVPEP2404014EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP66, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 29 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.2264950623885918
- Environmental Disclosure
- ENVPEP2404014EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- integral LED
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP2404014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated double-headed push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
