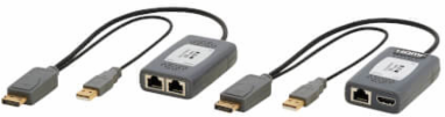

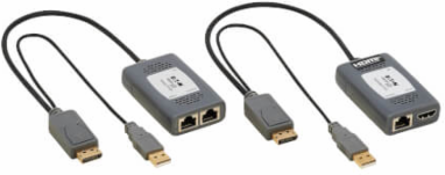

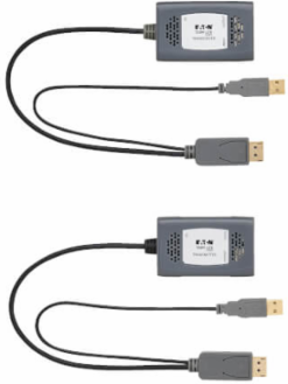

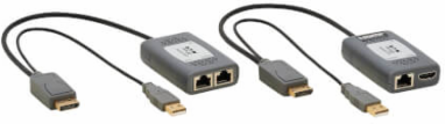

Tripp Lite B127U111PDPD DisplayPort over Cat6 Extender Kit, Pigtail Transmitter/Receiver, 4K 60 Hz, HDR, 4:4:4, 230 ft, TAA
- MPN: B127U111PDPD
- UPC: 037332281265
- PPN: TRP-B127U-111-PDPD
CAD
$554.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1-Port DisplayPort over Cat6 Extender Kit, Pigtail Transmitter/Receiver, 4K 60 Hz, HDR, 4:4:4, 230 ft. (70.1 m), TAA
Features
- Pigtail transmitter
- Pigtail receiver
Documentation & Downloads
Specifications
Material
| Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Material of Construction | Plastic |
|---|---|
| Form Factor | Pigtail |
Dimensions
| Transmitter Video Input | DisplayPort |
|---|---|
| DisplayPort Specification | 1.2 |
| Daisy-Chain Port | RJ45 (Female) |
| Side A - Connector 2 | USB A (Male) |
| Side A - Connector 4 | HDMI (Female) |
| Side B - Connector 1 | DisplayPort (Male) |
| Side B - Connector 3 | Micro-USB B (Female) |
| Power Source | USB |
| Recommended Category Cable | 24 AWG Solid Wire Cat6 |
| Cable Outer Diameter | 4.2 mm |
| Video Ports Details | HDCP 1.4; HDCP 2.2; DisplayPort 1.2 |
|---|---|
| HDCP Specification | 1.2; 1.4; 2.2 |
| Side A - Connector 1 | DisplayPort (Male) |
| Side A - Connector 3 | RJ45 (Female) |
| Side A - Connector 5 | Micro-USB B (Female) |
| Side B - Connector 2 | USB A (Male) |
| Side B - Connector 4 | (2) RJ45 (Female) |
| Daisy-chainable | Yes |
| Wire Gauge | 28 |
| LED Indicators | Transmitter: x1 Green (Power); Receiver: x1 Green (Power), x1 Orange (Data) |
Reference
| Product Type | Pigtail Video |
|---|---|
| Product Warranty Period | 1-year limited warranty |
| Technology | Cat6; DisplayPort; HDMI; USB |
|---|
Performance
| Max Supported Video Resolution | 3840 x 2160 @ 60 Hz |
|---|---|
| HDR Support | Yes |
| Max Supported Color Depth | 36-bit Deep Color |
| Signal Transmission | Unidirectional |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-85% non-condensing |
| Supported Resolutions | 1280x720 (720p); 1920x1080 (1080p); 1920x1200; 2560x1600; 3840x2160 (4K) |
|---|---|
| Chroma Sub Sampling | 4:2:0; 4:2:2; 4:4:4 |
| Transmission Distance | 230 ft (70 m) |
| Audio Specification | Passthrough audio formats including LPCM 2.0/5.1/7.1 |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
