Schneider Electric ZB5AW7A1720 Harmony XB5 Illuminated Double Head Push Button 22mm with IP66 Rated Protection
Schneider Electric ZB5AW7A1720 Harmony XB5 Illuminated Double Head Push Button 22mm with IP66 Rated Protection
- MPN: ZB5AW7A1720
- PPN: SCH-ZB5AW7A1720
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$46.48/ EA
Description

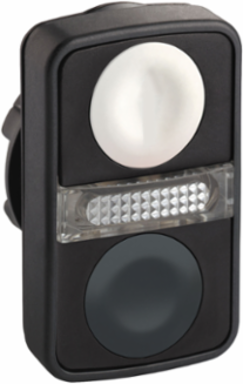

This double head has 1 white, 1 black button and 1 central white pilot light, it provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is distinguishable visually at a distance thanks to its pilot light, clear colors and by touch due to flush elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- DNV || BV || GL || LROS (Lloyds register of shipping) || CSA || UL listed
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
Ik Degree Of ProtectionIK05 conforming to IEC 50102
StandardsIEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Net Weight
- 0.023 kg
- Device Presentation
- basic sub-assemblies
- Mechanical Durability
- 1000000 cycles
- Cad Overall Width
- 30 mm
Cad Overall Height50 mm
Operator Profileblack flush, unmarked || white flush, unmarked
Station NameXALD 1 cut-out
Cad Overall Depth30 mm
Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Product Or Component Type
- head for illuminated double-headed push-button
- Operator Profile
- 2 flush push-buttons - 1 central pilot light
- Sale Per Indivisible Quantity
- 1
- Product Compatibility
- integral LED
Mounting Diameter22 mm
Operators Descriptionwhite unmarked - black unmarked
Shape Of Signaling Unit Headrectangular
Head Typestandard
Bezel Materialdark grey plastic
Device Short NameZB5
