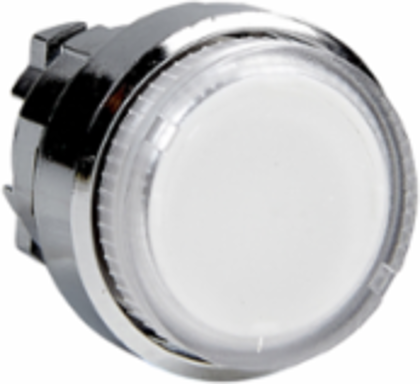

Schneider Electric ZB4BW17 Harmony XB4 Illuminated Push Button Head 22 mm Spring Return IP66
- MPN: ZB4BW17
- PPN: SCH-ZB4BW17
CAD
$13.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4, plain lens illuminated projecting clear button head operates with a spring return / impulse mechanism. This illuminated button head for BA9s Integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France
Physical Attributes

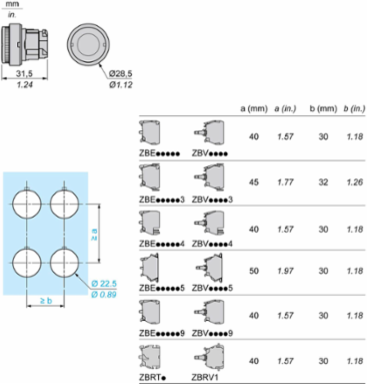

- Cad Overall Depth
- 32 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Cap Operator Or Lens Colorclear
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- chromium plated metal, chromium plated metal
- Electrical Composition Code
- M7 6 single front mounting BA 9s, M8 6 single and double front mounting BA 9s, M9 2 single front mounting BA 9s and transformer
- X C Product
- projected push BA9s
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0043534989, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0040012295, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 9.63
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 37 %
- Device Short Name
- ZB4
- Head Type
- standard
- Marking
- unmarked
- Mounting Diameter
- 22.5 mm
- Operator Profile
- clear projecting, unmarked
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.3 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Operator Add Information
- with plain lens
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate AgencyCSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0453414316
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.2048282526
Local Data StatusPublishable
Return IndicatorY
Future Msrp12.47
Stock Policy1
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1808008EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content21 %
Compatibility CodeZB4
Group Of Productprojected push BA9s
Main Groupillum push-button
Mechanical Durability10000000 cycles
Operator Additional Informationwith plain lens
Overvoltage Categoryclass I conforming to IEC 60536
Product Or Component Typehead for illuminated push-button
Range Of ProductHarmony XB4
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Type Of Operatorspring return
Cap Operator Or Lens Colorclear
Pep CodeENVPEP1808008_V2-EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Cap/Operator Or Lens Colourclear
Package Weight(Lbs)26.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level21 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.2585244126
Environmental DisclosureENVPEP1808008_V2-EN
Packaging Made With Recycled CardboardNo
Product CompatibilityBA 9s
Pep CodeENVPEP1808008_V2-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
