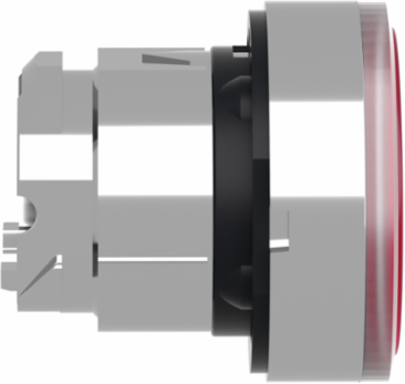

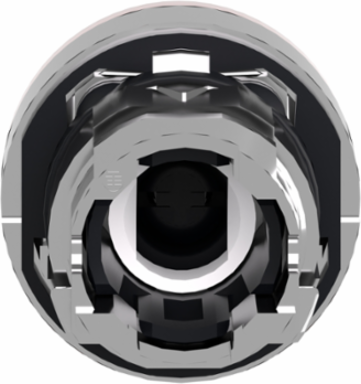

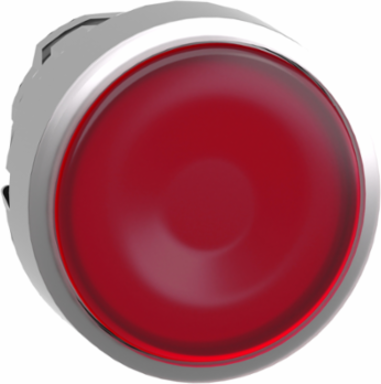

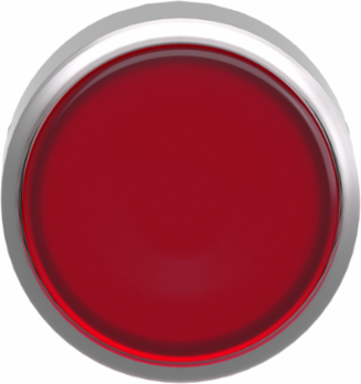

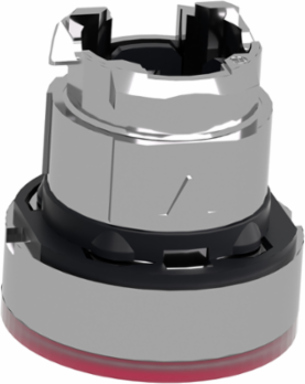

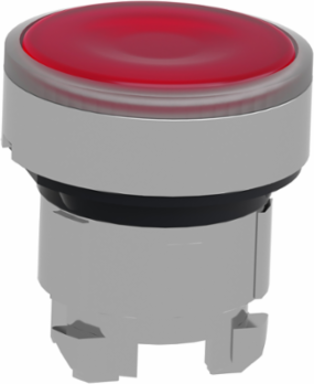

Schneider Electric ZB4BA48 Harmony XB4 22mm Red Metal Push Button Head, IP66, Spring Return
- MPN: ZB4BA48
- PPN: SCH-ZB4BA48
CAD
$22.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, plain lens flush red button head with transparent cap is used for insertion of legend, operates with a spring return / impulse mechanism. This button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and used for insertion of legend. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Cad Overall Depth
- 30 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Cap Operator Or Lens Colorred
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- chromium plated metal, chromium plated metal
- Electrical Composition Code
- M1 6 single front mounting integral LEDM2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, C3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting
- Certificate Agency
- BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0366817319, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.2055525504
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 14 %
- Device Short Name
- ZB4
- Head Type
- standard
- Main Group
- illum push-button
- Mechanical Durability
- 10000000 cycles
- Operator Additional Information
- for insertion of legend
- Overvoltage Category
- class I conforming to IEC 60536
- Product Or Component Type
- head for illuminated push-button
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.3 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Operator Add Information
- for insertion of legend
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 31.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizableno, 0
X C Productflush push with inser of legend
Carbon Footprint Of The Distribution Phase [A4]0.0037923606, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0058165125
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagY
Weee ApplicabilityComponent
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308035EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content21 %
Compatibility CodeZB4
Group Of Productflush push with inser of legend
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Markingunmarked
Mounting Diameter22.5 mm
Operator Profilered flush, unmarked
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingNo
Type Of Operatorspring return
Cap Operator Or Lens Colorred
Pep CodeENVPEP2308035EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %84
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308035EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level21 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.2518431554
Environmental DisclosureENVPEP2308035EN
Packaging Made With Recycled CardboardYes
Product Compatibilityuniversal LED
Pep CodeENVPEP2308035EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
