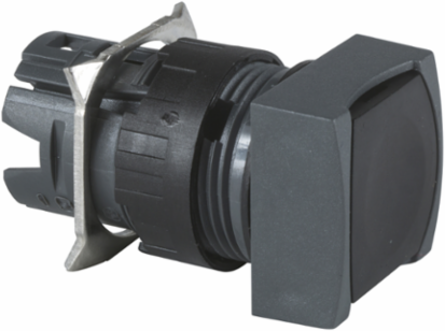

Head for non illuminated push button, Harmony XB6, black square flush, 16mm, integral LED, spring return, unmarked
Schneider Electric

Schneider Electric ZB6CA2 Head for non illuminated push button, Harmony XB6, black square flush, 16mm, integral LED, spring return, unmarked

  • MPN: ZB6CA2
  • PPN: SCH-ZB6CA2
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $18.52

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony ZB6CA2 is a black square flush push button head, spring return, unmarked. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Mexico

    Physical Attributes

    Cad Overall Depth
    33 mm
    Cad Overall Width
    18 mm
    Cad Overall Height18 mm

    Important Information Attributes

    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Carbon Footprint Of The Distribution Phase A4
    0.001046127, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A5
    0.0009019178, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6
    0 kg CO2 eq., 0
    Local Data Status
    Publishable
    Return Indicator
    Y
    Weee Scope
    Out
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Product Kit Identifier
    N
    Compatibility Code
    ZB6
    Electrical Shock Protection Class
    class II conforming to IEC 61140
    Operator Profile
    black flush, unmarked
    Product Or Component Type
    head for non-illuminated push-button
    Range Of Product
    Harmony XB6
    Sale Per Indivisible Quantity
    1
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    0.2 kg CO2 eq.
    Warranty In Months
    18
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Harmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential, In %
    17
    Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.0145145704
    Carbon Footprint Of The Manufacturing Phase A1 To A30.2 kg CO2 eq., 0.1787148194
    Certificate AgencyGOST, CSA, UL, CCC
    Local Publishable Date2026-01-12
    Stocking FlagY
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2403025EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Bezel Materialplastic
    Device Short NameZB6
    Mounting Diameter16 mm
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Protective TreatmentTC
    ReturnabilityYes
    Shape Of Signaling Unit Headsquare
    Sustainable PackagingNo
    Type Of Operatorspring return
    Pep CodeENVPEP2403025EN
    Pep Verification Date2023-10-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2403025EN
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2403025EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.1951774346
    Environmental DisclosureENVPEP2403025EN
    Ip Degree Of ProtectionIP65 IEC 60529
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-10-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    head for non-illuminated push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8
    EC000221
    ETIM 9EC000221

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
