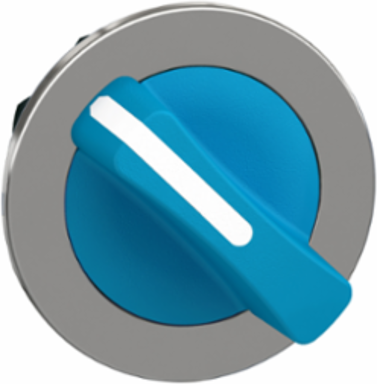

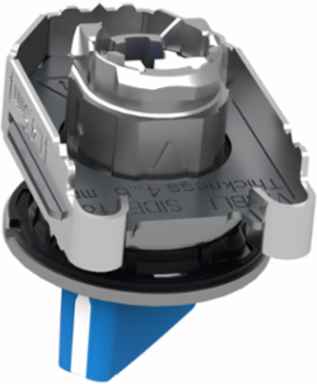

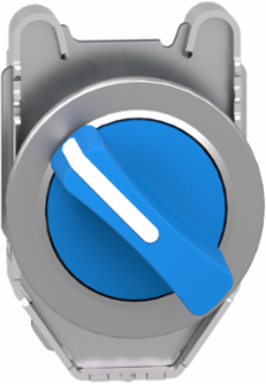

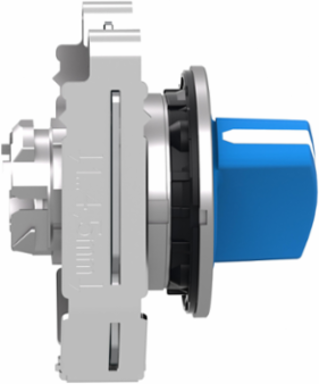

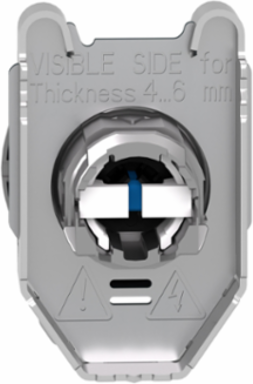

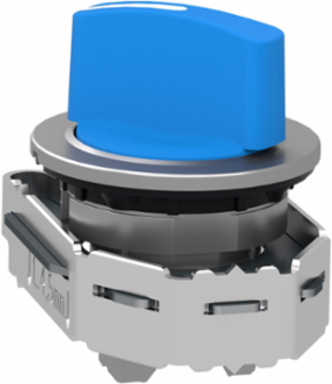

Schneider Electric ZB4FD206 Head for selector switch, Harmony XB4, blue handle, flush, 30mm, 2 positions, stay put

Head for selector switch, Harmony XB4, blue handle, flush, 30mm, 2 positions, stay put
  • MPN: ZB4FD206
  • PPN: SCH-ZB4FD206

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$34.66/ EA

Description

This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

Specifications

Environment

Product Certifications
UL listed || CSA || CCC || EAC
Ambient Air Temperature For Operation
-40-70 °C
Overvoltage Category
class I IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Protective Treatment
TH
Ik Degree Of ProtectionIK06 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Specifications

Sale Per Indivisible Quantity
1
Bezel Material
chromium plated metal
Operator Position Information
2 positions 90°
Type Of Operator
stay put
Shape Of Signaling Unit Head
round
Head Type
built-in-flush
Range Of ProductHarmony XB4
Operator Profileblue standard handle
Mounting Diameter30.5 mm
Product Or Component Typehead for selector switch
Device Short NameZB4F

Complementary

Mechanical Durability
1000000 cycles

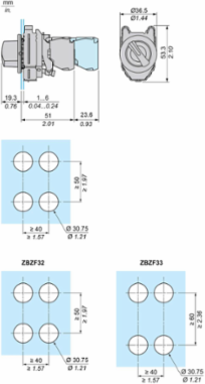

Cad Overall Width
36.6 mm
Net Weight
0.078 kg
Device Presentation
basic element
Electrical Composition CodeC3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Cad Overall Depth47 mm
Cad Overall Height36.6 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1808008EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
