Schneider Electric ZB4BA71115 Head for triple headed push button, Harmony XB4, white flush/red projecting/white flush pushbutton Ø22 mm with marking
Schneider Electric ZB4BA71115 Head for triple headed push button, Harmony XB4, white flush/red projecting/white flush pushbutton Ø22 mm with marking
- MPN: ZB4BA71115
- PPN: SCH-ZB4BA71115
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$73.80/ EA
Description

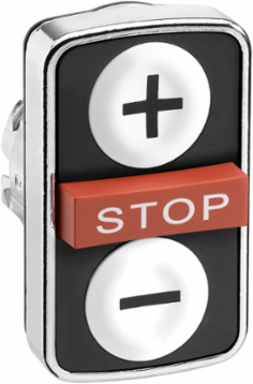

This Harmony XB4, triple head has 1 red and 2 white buttons, operates with a spring return / impulse mechanism. It is marked with "+", "STOP" and "-" symbols. This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Product Certifications
- BV || GL || UL listed || DNV || LROS (Lloyds register of shipping) || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP69 IEC 60529
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsIEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass I IEC 60536
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting
- Net Weight
- 0.056 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Mechanical Durability
- 1000000 cycles
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
Device Presentationbasic element
Operator Profilered projecting, STOP white) || white flush, - black) || white flush, + black)
Specifications
- Range Of Product
- Harmony XB4
- Type Of Operator
- spring return
- Product Or Component Type
- head for triple-headed push-button
- Operator Profile
- 2 flush - 1 central projecting STOP push-buttons
- Sale Per Indivisible Quantity
- 1
- Device Short Name
- ZB4
Mounting Diameter22 mm
Operators Descriptionwhite ''+'' - white ''-'' - red ''STOP''
Shape Of Signaling Unit Headrectangular
Head Typestandard
Bezel Materialchromium plated metal
