Schneider Electric ZB5AA71114 Head for triple headed push button, Harmony XB5, XB4, white flush/red projecting/white flush pushbutton Ø22 mm with marking
Schneider Electric ZB5AA71114 Head for triple headed push button, Harmony XB5, XB4, white flush/red projecting/white flush pushbutton Ø22 mm with marking
- MPN: ZB5AA71114
- PPN: SCH-ZB5AA71114
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$66.97/ EA
Description

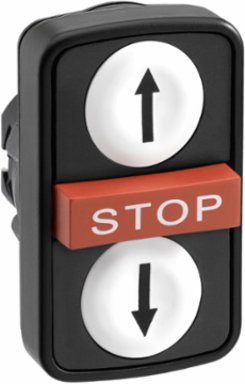

This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 white buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67 and IP69K. It makes it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- BV || CSA || LROS (Lloyds register of shipping) || DNV || GL || UL listed
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK05 conforming to IEC 50102
StandardsIEC 60947-5-4 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Net Weight
- 0.023 kg
- Device Presentation
- basic element
- Operator Profile
- red projecting, STOP white) || white flush, down arrow black) || white flush, up arrow black)
- Station Name
- XALD 1 cut-out
- Cad Overall Depth
- 35 mm
Colour Of Markingblack marking when white caps || white marking when green, red or black caps
Cad Overall Height50 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Mechanical Durability1000000 cycles
Cad Overall Width30 mm
Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Product Or Component Type
- head for triple-headed push-button
- Operator Profile
- 2 flush - 1 central projecting STOP push-buttons
- Bezel Material
- dark grey plastic
Mounting Diameter22 mm
Operators Descriptionwhite ''up arrow'' - white ''down arrow'' - red ''STOP''
Shape Of Signaling Unit Headrectangular
Head Typestandard
Device Short NameXB5
