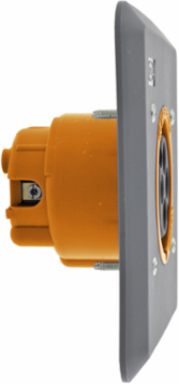

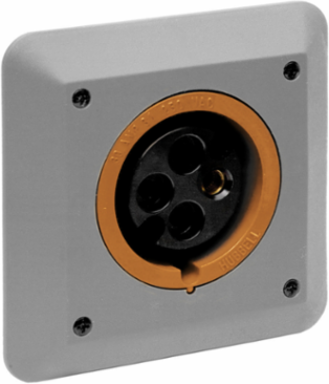

Hubbell Wiring Device-Kellems L430R12 Heavy Duty IEC Pin and Sleeve Receptacle, 30A 125/250V, 3-Pole, Watertight
- MPN: L430R12
- UPC: 783585888088
- PPN: HBL-L430R12
- UNSPSC: 39121406
CAD
$355.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 125/250V, 3-Pole 4- Wire Grounding, Terminal Screws, Orange
Features
- Split sleeves with self-adjusting stainless steel springs
- Color coding for easy identification of mating devices
- Stainless steel terminal screws resist rust and corrosion
- Standard
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 4.620 in
- Amperage Rating
- 30 A
- Color
- Orange
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Special Features
- Standard
- Voltage Rating
- 125/250 VAC
- Wire Size
- #12 AWG to #8 AWG
- General Literature Asset 1 Display Text
- IEC Pin & Sleeve Devices
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, REPL, 3P4W, 30A 125/250V,LO-PRO
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.75 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
PerformanceElectrical - Current Interrupting - Certified for current interruption at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 250V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP22 Suitability;Environmental - Operating Temperatures - Max. Continuous +75°C;Min. -40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American convention
ApplicationHigh Ampacity Watertight Connections
Environmental ConditionsWatertight
Number of Poles3-Pole
PhaseSingle Phase
TypeIP22 Receptacle
Wattage7500
Voltage Rating Description125/250 VAC
General Literature Asset 2 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
Current Rating30 A
SeriesLow Profile
BOX SIZE6.495x12.745x9.375 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585888088
Each - Pack DescriptionEach
NAICS Code335931A104
