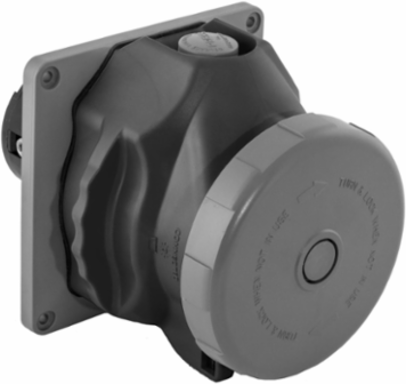

Hubbell Wiring Device-Kellems HBLS4100R5W Heavy Duty IEC Pin & Sleeve Watertight Receptacle, 100 A 3 Phase 600 VAC
- MPN: HBLS4100R5W
- UPC: 783585575353
- PPN: HBL-HBLS4100R5W
- UNSPSC: 39121406
CAD
$3654.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve,Receptacle Switched, 100 A 3 Phase 600 VAC3-Pole 4-Wire Grounding, NEMA 4X/IP69k
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a disconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
- Watertight
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 6.600 in
- Ingress Protection
- TYPE 3R,3RX,4X AND IP68,IP69K
- Amperage Rating
- 100 A
- Color
- Black
- Dielectric Strength
- Withstand 3000V AC
- Insulation
- Insulated Body
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Special Features
- Watertight
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact
- Voltage Rating
- 3 Phase 600 VAC
- Engineering Drawing 1 Display Text
- HBLS4100R5W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Advantage™ Series Switch-Rated IEC Pin & Sleeve Devices
- Nema Rating
- Non-NEMA
- Number Of Poles
- 3-Pole
- Style
- IP69k NEMA 4X
- Description - Invoice
- PS, IEC,SW R, 3P4W, 100A 3P 600V,4X/69K
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585575353
Current / Amperage Rating100 A
Industry Standard(s)UL Listed, File E146033;CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2
SizeStandard
ApplicationIndustrial/Commercial
ConnectionPressure Screw Terminal
Environmental ConditionsWatertight
MountingScrew Mount
Number of Poles3-Pole
PhaseThree Phase
StandardUL Listed, File E146033;CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2
TypeWatertight Receptacle
Wire Size#6AWG - #1AWG
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
Mounting TypeScrew Mount
Number Of Conductors4-Wire Grounding
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
SeriesAdvantage® Series
BOX SIZE(in)
NAICS Code335931A104
