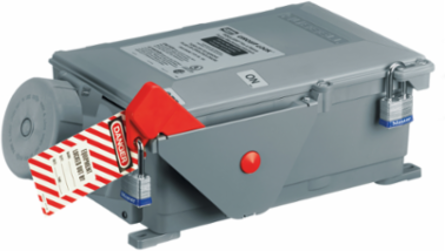

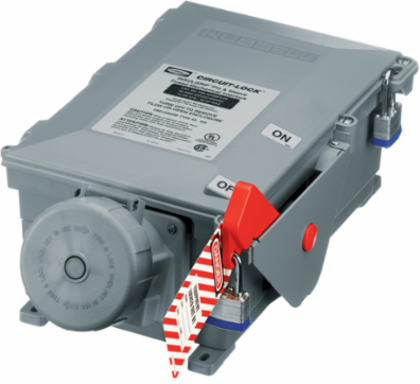

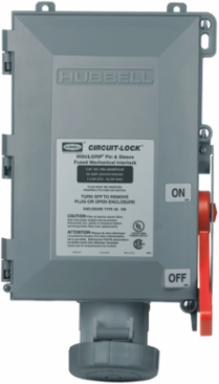

Hubbell Wiring Device-Kellems HBL460MIFS2W Heavy Duty Female Fused Receptacle, 60A 600V AC, 3-Pole 4-Wire
- MPN: HBL460MIFS2W
- UPC: 783585514901
- PPN: HBL-HBL460MIFS2W
- UNSPSC: 39121406
CAD
$4055.05
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, Indulgrip Pin and Sleeve Devices, Industrial Grade, Female, Fused Mechanically Interlocked Receptacle, 60A 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws
Features
- Spring-loaded receptacle liftcover with gasket

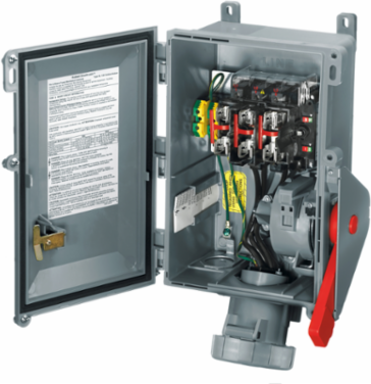

- Removable door for ease of wiring and installation
- High visibility red handle can be locked in the OFF position
- Watertight
Specifications
Key Specifications
| Country of Origin | Italy |
|---|---|
| Width | 12.400 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000VAC Min.;Electrical - Max. Working Voltage - 250VDC/600VAC;Electrical - Operations - Mechanical 10,000 cycles minimum;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP66 Suitability;Environmental - Operating Temperatures - Max. Continuous +60°C;Min. Continuous -40°C w/o impact;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustable feet;Mechanical - Product Identification - Ratings are part of the external label and molded into the receptacle housing;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Application | High Ampacity Connections |
| NEMA Rating | Non-NEMA |
| Number of Wires | 4-Wire |
| Special Features | Watertight |
| Type | Mechanical Interlock |
| Wattage | 36000 W |
| Voltage Rating Description | 600V AC/250V DC |
| Engineering Drawing 1 Display Text | HBL460MIFS2W AutoCAD Drawing |
| General Literature Asset 2 Display Text | Circuit-Lock® Motor Disconnects |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Number Of Wires | 4-Wire |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A12A210 |
| Current Rating | 60 A |
| Series | Fused |
| BOX SIZE | 9.400x20.500x12.400 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585514901 |
| Case Weight | 18.500 lb. |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 60 A |
|---|---|
| Industry Standard(s) | UL Listed for US and Canada |
| Amperage Rating | 60 A |
| Environmental Conditions | Watertight |
| Number of Poles | 3-Pole |
| Phase | Single/Three |
| Standard | UL Listed for US and Canada |
| Voltage Rating | 600 VAC/250 VDC |
| Wire Size | #8 AWG to #2 AWG |
| Weight | 18.5 lb. |
| General Literature Asset 1 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| General Literature Asset 3 Display Text | Improved Short Circuit Current Ratings (SCCR) |
| Display Size | Standard Sized Product |
| Number Of Poles | 3-Pole |
| Style | Style 2;Insulgrip |
| Description - Invoice | PS, INS, MECHINT, 3P4W, 60A 600V, FUSE |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 18.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| NAICS Code | 335931A104 |
