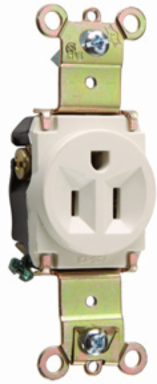

Pass & Seymour 5261LA Heavy Duty Spec Grade Single Receptacle, 15A, 125V, Impact-Resistant, Light Almond
- MPN: 5261LA
- UPC: 785007526172
- PPN: P-S-5261LA
CAD
$28.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Spec Grade Single Receptacle, 15A, 125V, Impact-Resistant, Light Almond
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- One-piece brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
- Terminal compartments isolated from each other for positive conductor containment.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.093 in
- Height
- 1.68 in
- Width
- 1.32 in
- Country of Origin
- Mexico
- Amperage
- 15.0 A
- Voltage
- 125.0 V
- Mounting Type
- Box
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Wire Connection Type
- Internal Pressure Plates
- Special Features
- Impact resistant, LED indicator, back & side wire\
ColorLight Almond
Product LinePass & Seymour
PhaseThree
Standard1449
StandardUL 498
StandardFEDSPEC
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles1.0
Number of PolesDouble Pole
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
FeaturesSingle Piece Plated Steel Mounting Strap
