TeSys Giga High Power Contactor 4 Pole 700A 440V IP2X
Schneider Electric

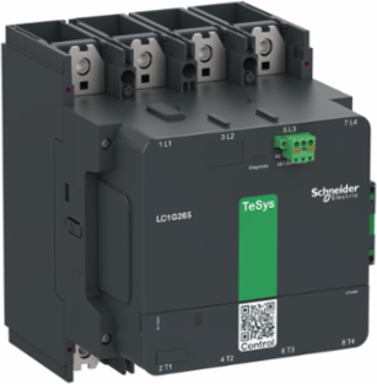

Schneider Electric LC1G5004KUEN TeSys Giga High Power Contactor 4 Pole 700A 440V IP2X

  • MPN: LC1G5004KUEN
  • PPN: SCH-LC1G5004KUEN
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

TeSys Giga High Power Contactor 4 Pole 700A 440V IP2X

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, China, Czechia, France
Depth226 mm

Physical Attributes

Color
dark grey

Complementary Attributes

Control Circuit Voltage Limits
operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Irms Rated Making Capacity
5090 A at 440 V
Rated Breaking Capacity
4600 A at 440 V
Maximum Operating Rate600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
Maximum Motor Phase Current500 A

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
500 A aM at <= 440 V for motor, 400 A aM at <= 690 V for motor, 800 A gG at <= 690 V, 600 A UL Type L at <= 600 V
Operating Time
40...70 ms closing, 15...50 ms opening
Safety Reliability Level
B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Certificate Agency
CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
[Ie] Rated Operational Current
500 A (at <60 °C) at <= 440 V AC-3, 700 A (at <40 °C) at <= 1000 V AC-1
[Ue] Rated Operational Voltage
<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]
14.358916060924981, 14 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.1 kg CO2 eq., 0.11891397981313281
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
3 329 kg CO2 eq., 3328.9708911114863
Local Publishable Date
2026-02-11
Stocking Flag
Y
Device Type
LV equipment - LV contactor
Traceability
Yes
Average Life Duration
20 year(s)
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Average Impedance
0.00008 Ohm
Compatibility Code
LC1G
Contactor Application
power switching
Electrical Durability
300 cycles AC-1 400 V
Inrush Power In W
660 W
Mounting Support
plate
Overvoltage Category
III
Product Availability
Non-Stock - Not normally stocked in distribution facility
Protective Treatment
TH
Range Of Product
TeSys Giga
Software Version
v6.2.4
Tightening Torque
35 N.m
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Hv
700 A
Database Version
2024-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit
unit
Energy Consumption On Product Lifetime, In Kwh
4029.6
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
Height Nominal
225 mm
[Ith] Conventional Free Air Thermal Current
700 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage
8 kV
Hold-in Power Consumption In W
9.3-9.3 W
Halogen-free Status
Halogen free plastic parts product
Package Weight(Lbs)
10.454 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole40 W AC-1 - Ith 700 A, 20 W AC-3 - Ith 500 A
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
[Icw] Rated Short-time Withstand Current4.0 kA - 10 s, 2.8 kA - 30 s, 2.2 kA - 1 min, 1.5 kA - 3 min, 1.2 kA - 10 min
[Uc] Control Circuit Voltage100...250 V, 100...250 V AC 50/60 Hz, 100...250 V DC
Connections - Terminalscontrol circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable endpower circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]12.613764140010883, 13 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]79 kg CO2 eq., 79.22303366187975
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Connection Pitch45 mm
Device Short NameLC1G
Inrush Power In Va750-750 VA
Mechanical Durability8 Mcycles
Number Of Poles4P
Pole Contact Composition4 NO
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint3 435 kg CO2 eq.
Control Circuit Voltage100...250 V
Pep CodeENVPEP2105013EN
Pep Verification Date2026-03-19
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; China, CN
Recyclability Potential, In %55
Width Nominal185 mm
[Ui] Rated Insulation Voltage1000 V
Hold-in Power Consumption In Va15.5-15.5 VA
Rated Thermal Current (Ith)700 A
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Permissible Ambient Air Temperature Around The Device
-40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
Halogene Performance
Halogen free plastic parts product
Mercury Free
Yes
Circularity Profile
ENVEOLI2105013
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2026-03-19
Psr Version
PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint3435.285518954115
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
