Killark

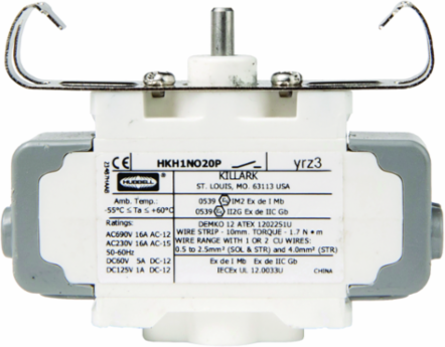

Killark HKH1NO20P Hazardous Location Factory Sealed Contact Block - 20A, N.O., 24-690V AC/DC

Hazardous Location Factory Sealed Contact Block - 20A, N.O., 24-690V AC/DC
  • MPN: HKH1NO20P
  • UPC: 783936092614
  • PPN: HBL-HKH1NO20P

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$117.60/ EA

Description

HKH 20A Factory Sealed Contact Block - NO Contact - Panel Mount

Features

  • Explosion Protected Panel Mount contact block 690VAC N.O. & N.C. capable of 20 Amps for Switching Duty and HP Ratings up to 1HP.
  • Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.

Specifications

Specifications

ARRA Compliant
Contact Manufacturer
Country of Origin
China
Horsepower - Maximum
1
Voltage Rating
24-690 AC/DC V
Amperage Rating
20 A
Frequency Rating
50/60 Hz
Description - Invoice
CONTACT BLCK, FACT SEALED N.O. PM, 20A
Image Actual Or Representative
R
Sub Class Code
D25D250
Series
HKH Series
BOX SIZE
0.000x0.000x0.000 (in)
Carton - Number of Sub Packs
20
Carton - SCC-14 Next Lower Level Sub Pack
00783936092614
Harmonization Code8536908585
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zones 1 & 2
Operating Temperature Range Celcius-40°C to 55°C
ActionMomentary
ApplicationContact block shall be installed in a Class I, Zone 1, AEx e II/Ex e IIC increased safety enclosure with a minimum IP54 rating or a Class I, Zone 1, AEx d IIC/Zone 21, Aex tb minimum IP64 rating, where the suitability is determined in the end application.
Class CodeD25
Freight Class Code06316009
MSDS FlagNo
UL File NumberE12379
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20
