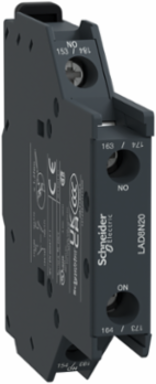

Schneider Electric LAD8N20 TeSys Deca Auxiliary Contact Block 2NO Side Mounting 690V AC
- MPN: LAD8N20
- PPN: SCH-LAD8N20
CAD
$66.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 2NO contacts rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. TeSys Deca contactors have been designed for perfect integration into control systems. Multi standards certified (IEC, UL, CSA, CCC, EAC). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.
Features
- Engineered specifically for seamless snap-on side mounting onto Schneider Electric TeSys D and TeSys Deca control relays and motor contactors. This modular auxiliary block instantly expands your electrical panel's logic capabilities without taking up valuable vertical DIN rail space, allowing maintenance crews to easily retrofit existing motor starters.
- Featuring two dedicated Normally Open (NO) instantaneous contacts, this block provides highly reliable, low-voltage feedback to PLCs, remote pilot lights, or secondary control relays. Adding these extra logic pathways ensures your automated machinery communicates flawlessly, reducing diagnostic time during complex industrial sequencing and motor interlocking.
- Designed with rugged screw clamp terminals, this auxiliary contact block guarantees a tightly torqued, vibration-resistant connection for both solid and flexible copper wire. This secure mechanical grip prevents accidental wire pull-outs in high-vibration manufacturing environments, eliminating frustrating phantom control faults and costly machine downtime.
- Fully UL Listed, CSA Certified, and IEC compliant, this premium Schneider Electric component meets the most rigorous international electrical standards for motor control accessories. Integrating OEM-certified, 600V-rated hardware ensures your custom-built industrial enclosures pass strict local safety inspections and deliver uncompromising operational liability protection.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United Kingdom, Indonesia, Singapore, United States
Depth71.3 mm
Complementary Attributes
- Irms Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- 1.7 N.m flat Ø 6 mm, 1.7 N.m Philips No 2, 1.7 N.m pozidriv No 2
- [Ie] Rated Operational Current
- 6 A at 120 V AC-151.04 A at 690 V AC-15, 0.55 A at 125 V DC-130.1 A at 600 V DC-13
- Connections - Terminals
- screw clamp terminals 2 1-4 mm²flexible without cable endscrew clamp terminals 2 1-4 mm²rigid without cable endscrew clamp terminals 1 1-4 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²flexible without cable end, screw clamp terminals 2 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²rigid without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.06786586045038151, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.008480726561347006, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 3 kg CO2 eq., 3.1606
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Environmental Characteristic
- normal environment
- Mechanical Durability
- 30 Mcycles
- Pole Contact Composition
- 2 NO
- Product Name
- TeSys Deca
- Protection Type
- gG fuse 10 A
- Range
- TeSys
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Pole Contact Comp
- 2 NO
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To add instantaneous auxiliary contact blocks in front face on TeSys k contactors as NO and NC contacts for 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 39
- Width Nominal
- 12.5 mm
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 3.1524
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 606.91
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 81.925
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 56.111
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 56.111
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyCB Scheme, UL, CSA, CCC, EAC, UKCA
[Ui] Rated Insulation Voltage690 V IEC 60947-5-1600 V UL, 600 V CSA
Non-overlap Time1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.15462428493948835
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.41771858290220826
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Use Carbon Footprint3.1606
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeLAD
Insulation Resistance> 10 MOhm> 10 MOhm
Mounting Locationside
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeauxiliary contact block
Protective TreatmentTH IEC 60068
Range Of ProductTeSys Deca
Shielding Continuity Terminalwithout
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1108007EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal72 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
Permissible Short-time Rating100 A 1 s120 A 500 ms140 A 100 ms
Package Weight(Lbs)60.000 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]3.1606
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]22.321
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]663.02
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]606.91
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 3.8092894548534253
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1108007EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1108007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- auxiliary contact block
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
