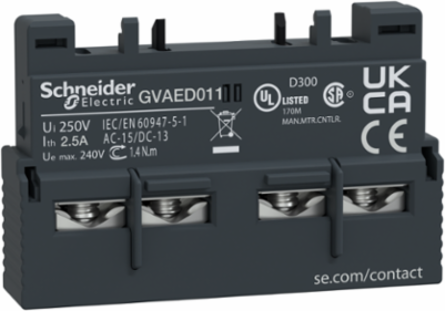

Schneider Electric GVAED011 TeSys Deca Auxiliary Contact Block 1NO+1NC, 29 mm Depth, 11 mm Height
- MPN: GVAED011
- PPN: SCH-GVAED011
CAD
$58.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys Deca auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 10-180s Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
| Product Or Component Type | auxiliary contact block |
|---|---|
| Mounting Location | front side |
| Quantity Per Set | set of 1 |
| Auxiliary Contacts Operation | fault signal 1 NO |
| Range | TeSys || TeSys Deca |
|---|---|
| Pole Contact Composition | 1 NO + 1 NC |
| Product Compatibility | GV3P || GV3L |
| Device Short Name | GVAED |
Complementary
| Minimum Switching Current | 5 mA |
|---|---|
| [Ith] Conventional Free Air Thermal Current | 2.5 A |
| Protection Type | GB2CB... circuit breaker || gG fuse 10 A |
| [Ui] Rated Insulation Voltage | 600 V UL 508 || 690 V IEC 60947-1 || 600 V CSA C22.2 No 14 |
| Tightening Torque | 1.4 N.m screw clamp terminals |
| Mechanical Durability | 100000 cycles |
| Depth | 29 mm |
| Height | 11 mm |
|---|---|
| [Ue] Rated Operational Voltage | 24...240 V AC || 24...60 V DC |
| Net Weight | 0.05 kg |
| Minimum Switching Voltage | 17 V |
| Rated Operational Power In Va | 300 VA 48-48 V AC-15 100000 cycles || 400 VA 690-690 V AC-15 100000 cycles || 500 VA 110-127 V AC-15 100000 cycles || 500 VA 500-500 V AC-15 100000 cycles || 650 VA 440-440 V AC-15 100000 cycles || 720 VA 230-240 V AC-15 100000 cycles || 850 VA 380-415 V AC-15 100000 cycles |
| Width | 45 mm |
| Rated Operational Power In W | 120 W 240 V DC-13 100000 cycles || 140 W 110 V DC-13 100000 cycles || 140 W 24 V DC-13 100000 cycles || 180 W 60 V DC-13 100000 cycles || 240 W 48 V DC-13 100000 cycles |
Environment
| Product Certifications | UKCA |
|---|
| Environmental Characteristic | normal environment |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2207006 |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | ENVEOLI2207006 |
