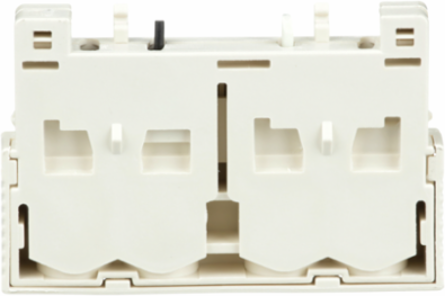

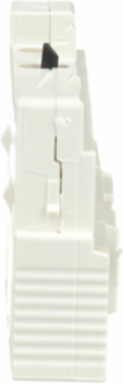

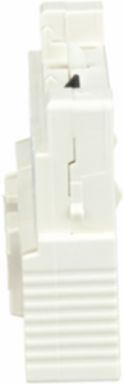

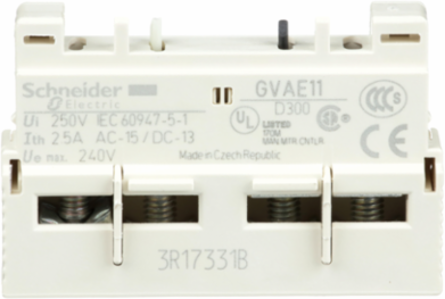

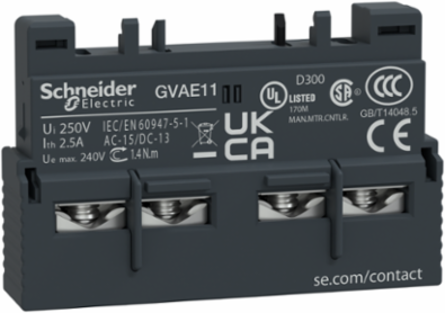

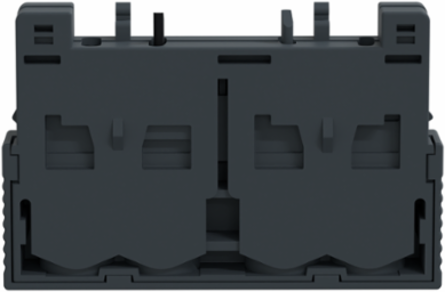

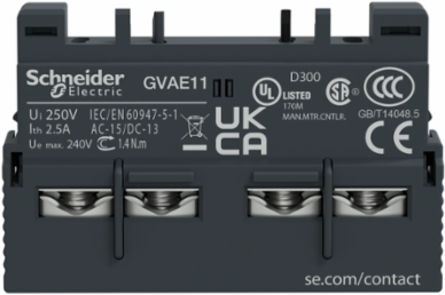

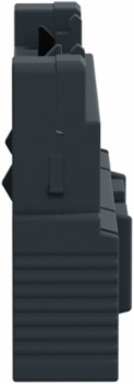

Schneider Electric GVAE11 TeSys Deca Auxiliary Contact Block 1NO+1NC, 240V AC, Front Mounting
- MPN: GVAE11
- PPN: SCH-GVAE11
CAD
$58.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- The GVAE11 is a front-mounting auxiliary contact block designed specifically for Schneider Electric TeSys GV2 and GV3 manual motor starters (motor circuit breakers). It is used to provide remote status signaling to a control system or to interlock with other electrical components.
- This module provides 1 NO (Normally Open) + 1 NC (Normally Closed) instantaneous contacts. NO Contact: Typically used to signal a PLC or a pilot light that the motor starter is "Closed" (engaged). NC Contact: Often used for fault signaling or to prevent other equipment from starting when the motor circuit is active.
- The GVAE11 features a compact, snap-on design that mounts directly onto the front face of the motor starter. This is a major space-saver because it does not increase the width of the starter on the DIN rail. It sits behind the small transparent cover on the front of the GV2/GV3 unit.
- These contacts are designed for high reliability across a wide range of voltages. While they are rated for industrial use up to 240V AC or 60V DC, their design ensures a clean signal even for low-energy inputs common in modern automation and PLC logic.
- The GVAE11 is built for long-term industrial durability, rated for 100,000 mechanical and electrical cycles. It is UL Listed, CSA Certified, and features "finger-safe" screw clamp terminals. It is an essential component for meeting safety standards that require feedback on the actual state of a motor's power circuit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, Czechia, Germany, France, United Kingdom, United States
Depth29 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Rated Operational Power In Va
- 120 VA 110-120 V AC-15 100000 cycles, 120 VA 230-240 V AC-15 100000 cycles48 VA 24-24 V AC-15 100000 cycles60 VA 48-48 V AC-15 100000 cycles
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Rated Operational Power In W15 W 48 V DC-13 100000 cycles24 W 24 V DC-13 100000 cycles9 W 60 V DC-13 100000 cycles
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- [Ui] Rated Insulation Voltage
- 300 V UL 508, 300 V CSA C22.2 No 14250 V IEC 60947-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.042975901165365114, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.11965725573922227
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- GVAE
- Environmental Characteristic
- normal environment
- Mounting Location
- front side
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Type
- gG fuse 10 AGB2CB06 circuit breaker 10 A maximum
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 0.2 kg CO2 eq.
- Pole Contact Comp
- 1 NO + 1 NC
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To add instantaneous auxiliary contact blocks in front face on TeSys GV Circuit breakers as NO and/or NC contacts for 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 42
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- 24...240 V AC24...60 V DC
- Package Weight(Lbs)
- 17.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyCB Scheme, CE, UKCA, CCC, cULus, EAC
Carbon Footprint Of The Distribution Phase [A4]0.0057631299125867775, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0015142136172870977
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.0025283999999999997
Local Publishable Date2026-07-07
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2207006
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGVAE
Energy Efficiency OptimizedFalse
Mechanical Durability100000 cycles
Pole Contact Composition1 NO + 1 NC
Product Or Component Typeauxiliary contact block
Quantity Per Setset of 10
Software Versionv5.9.4
Tightening Torque1.7-1.7 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2207006EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal11 mm
[Ith] Conventional Free Air Thermal Current2.5 A
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536698000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Product CompatibilityGV2P, GV2L, GV2ME, GV2LE, GV2RT, GV2LM, GV3P, GV3L
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint0.17243890043446125
Environmental DisclosureENVPEP2207006EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2207006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- auxiliary contact block
