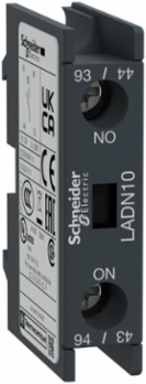

Schneider Electric LADN10 TeSys Deca Auxiliary Contact Block 1NO 10A 690V Front Mounting
- MPN: LADN10
- PPN: SCH-LADN10
CAD
$28.42
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. It provides 1NO instantaneous contact rated up to 10A 690V AC. Multi standards certified (IEC, UL, CSA, CCC, EAC). Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Add-on block with 1NO auxiliary contact, with instantaneous operation. High electrical durability , several millions of operating cycles in AC-14/AC-15/DC-13 according conditions. Mounting by clip-on on front of all TeSys Deca and TeSys F contactors.
Features
- Engineered for seamless mechanical integration, this add-on component features a tool-free, front clip-on mounting mechanism that snaps directly onto the face of any standard TeSys Deca or TeSys D contactor (including models LC1D80 to LC1D115) as well as TeSys F (LC1F) control relays. This drop-in compatibility means you can expand your current industrial control panel footprint vertically without consuming precious extra DIN rail space.
- This auxiliary contact block provides 1 Normally Open (1 NO) instantaneous contact composition that functions in perfect synchronization with the main poles of the parent contactor. It acts as an efficient feedback loop or status indicator for programmable logic controllers (PLCs) and pilot lights, instantly signaling when the main power circuit is engaged to ensure precise system diagnostics.
- Built to manage heavy duty industrial control workloads, this contact block boasts a conventional free air thermal current (Ith) of 10 A and a rated insulation voltage (Ui) of up to 690 V conforming to the IEC 60947-5-1 standard (600 V certified for UL and CSA applications). This high voltage threshold protects your low-voltage control circuits against transient voltage spikes and catastrophic insulation breakdown during high-amperage switching sequences.
- Outfitted with robust multi-standard screw clamp terminals, this block accommodates a highly versatile range of wiring choices including single or double flexible and rigid conductors from 1 mm2 up to 4 mm2 (with or without cable ends). The specialized terminal design accepts flathead, Phillips No. 2, or Pozidriv No. 2 screwdrivers at a high tightening torque of 1.7 N.m, eliminating loose wire connections caused by intense industrial machine vibrations.
- Designed to minimize production downtime and system maintenance overhead, the device delivers a massive mechanical durability rating of 30 million operating cycles (30 Mcycles). This superior service life guarantees consistent, high-reliability performance in high-frequency switching environments like HVAC ventilation fans, conveyor systems, and industrial pump panels.
- Fully compliant with stringent global regulatory frameworks, this module carries official UL, CSA, CE, UKCA, and CCC markings, alongside specialized fire and dustproof safety compliance under IEC 60335-1 and anti-flammable refrigerant testing. Enclosed in an IP20 finger-safe housing and treated for extreme thermal environments, it operates efficiently across an ambient air temperature range of -5 C to 60 C up to altitudes of 3,000 meters without requiring performance derating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, Spain, France, United Kingdom, United States
Depth35 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Irms Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- Certificate Agency
- CB Scheme, UL, CSA, CCC, EAC, UKCA
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1600 V UL, 600 V CSA
- Non-overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.07028376588158561
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.18987208313736742
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Use Carbon Footprint
- 3.1606
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- LADN
- Insulation Resistance
- > 10 MOhm> 10 MOhm
- Mounting Location
- front
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- auxiliary contact block
- Protective Treatment
- TH IEC 60068
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Pole Contact Comp
- 1 NO
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To add instantaneous auxiliary contact blocks in front face on TeSys k contactors as NO and NC contacts for 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 39
- Width Nominal
- 13 mm
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 3.1524
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 606.91
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 81.925
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 56.111
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 56.111
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Tightening Torque1.7 N.m flat Ø 6 mm, 1.7 N.m Philips No 2, 1.7 N.m pozidriv No 2
[Ie] Rated Operational Current6 A at 120 V AC-151.04 A at 690 V AC-15, 0.55 A at 125 V DC-130.1 A at 600 V DC-13
Connections - Terminalsscrew clamp terminals 2 1-4 mm²flexible without cable endscrew clamp terminals 2 1-4 mm²rigid without cable endscrew clamp terminals 1 1-4 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²flexible without cable end, screw clamp terminals 2 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²rigid without cable end
Carbon Footprint Of The Distribution Phase [A4]0.030848118386537053, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0038548757097031845, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 3.1606
Local Publishable Date2026-06-30
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Environmental Characteristicnormal environment
Mechanical Durability30 Mcycles
Pole Contact Composition1 NO
Product NameTeSys Deca
Protection TypegG fuse 10 A
Range Of ProductTeSys Deca
Shielding Continuity Terminalwithout
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1108007EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal48 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
Permissible Short-time Rating100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms
Package Weight(Lbs)19.000 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]3.1606
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]22.321
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]663.02
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]606.91
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 3.4554588431151934
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1108007EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1108007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
