Schneider Electric LADN40 TeSys Deca Auxiliary Contact Block, 4NO, Screw Clamp Terminals, 10A, 690V AC
- MPN: LADN40
- PPN: SCH-LADN40
CAD
$113.63
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 4NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Features

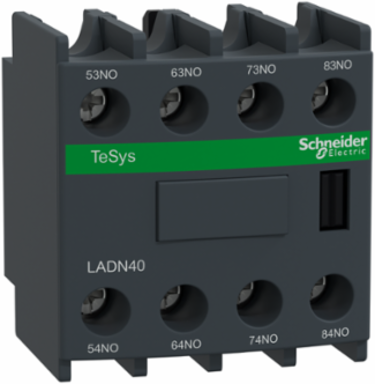

- The Schneider LADN40 is a snap-on auxiliary contact module designed to expand the control capabilities of TeSys Deca (formerly TeSys D) contactors and control relays. It provides additional electrical "feedback" or signaling points without increasing the physical footprint of the contactor on the DIN rail.
- he "40" indicates the contact arrangement: 4 NO (Normally Open) contacts. When the main contactor is energized (pulled in), all four of these auxiliary contacts will close simultaneously. This is ideal for applications requiring multiple simultaneous signals, such as: Sending a "Run" status to a PLC. Lighting up a "System Active" pilot light. Interlocking other control relays in a complex sequence. Triggering an external cooling fan or timer.
- The LADN40 is a front-mount block. It snaps directly onto the face of a TeSys D contactor (from 9A up to 150A models). It uses a simple, tool-free clip-on mechanism that engages with the contactor's moving armature, ensuring the auxiliary contacts operate in perfect synchronization with the main power poles.
- These contacts are designed for high reliability even in low-voltage control circuits. They feature a minimum switching capacity of 5mA at 17V, making them perfect for interfacing with modern PLC inputs or sensitive electronic controllers where "dry contact" reliability is essential.
- The unit is equipped with IP20 finger-safe screw clamp terminals. These terminals use the same rugged design as the contactors themselves, ensuring that control wires stay tight and protected against vibration, which is a common cause of intermittent faults in industrial control panels.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
- Conventional Thermal Current
- 10 A at 60 °C
- Making Capacity
- 140 A AC, 250 A DC
- Mechanical Durability
- 30 Mcycles
- Storage Temperature Range
- -60 to 80 °C
- Ambient Air Temperature For Operation
- -5 to 60 °C

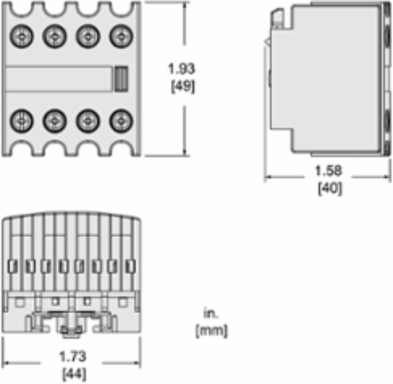

- Height
- 48 mm (1.89 in)
- Depth
- 42 mm (1.65 in)
- Connection Type
- Screw Clamp Terminals (1-4 mm² flexible and rigid)
- Operating Altitude
- 3000 m
- IP Degree of Protection
- IP2X IEC 60529
- Compliance
- CB, UL, CSA, CCC, EAC, UKCA, RoHS, REACh
- Colour
- Dark Grey
- Non-Overlap Time
- 1.5 ms energisation and de-energisation no overlap between NC and NO
- Auxiliary Contacts Operation
- instantaneous
- Minimum Switching Current
- 5 mA
- Range
- TeSys, TeSys Deca
- Product Or Component Type
- auxiliary contact block
- Toxic Heavy Metal Free
- Yes
- China Rohs Regulation
- Pro-active declaration (out of legal scope)
- Environmental Disclosure
- ENVPEP110807EN_V3
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Compliant
Rated Operational Voltage690 V AC 25...400 Hz
Permissible Short-Time Rating100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms
Pole Contact Composition4 NO
Operating Temperature Range-5 to 60 °C
Rated Insulation Voltage690 V IEC, 600 V UL, 600 V CSA
Ambient Air Temperature For Storage-60 to 80 °C
Width44 mm (1.73 in)
Net Weight0.05 kg (0.11 lb)
Tightening Torque1.7 N·m
Mounting LocationFront
StandardsEN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012
Product CertificationsCB, UL, CSA, CCC, EAC, UKCA
Mercury FreeYes
Insulation Resistance> 10 MOhm
Minimum Switching Voltage17 V
Device Short NameLADN
Protective TreatmentTH IEC 60068
Environmental Characteristicnormal environment
Reach Free Of SvhcYes
Sustainable Offer StatusGreen Premium product
Range CompatibilityTeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
Circularity ProfileN/A
