Telemecanique Sensors

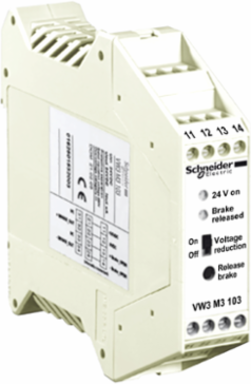

Telemecanique Sensors VW3M3103 holding brake controller - 24 V DC - 50 W - IP20

holding brake controller - 24 V DC - 50 W - IP20
  • MPN: VW3M3103
  • PPN: SCH-VW3M3103

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$753.86/ EA

Description

holding brake controller - 24 V DC - 50 W - IP20

Specifications

Environment

Ip Degree Of Protection
IP20

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
X
Pvc Free
Yes
Eu Rohs Directive
Not applicable, out of EU RoHS legal scope
Reach Free Of Svhc
Yes
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold

Complementary

Braking Current
1.6 A
Supply Voltage Limits
19.2-30 V
Power Consumption In W
50 W
Net Weight
0.6 kg
Output Voltage17...19 V DC || 23...25 V DC before power reduction
Input Current0.5 A + brake nominal current
Normal Time To Voltage Reduction1000 ms

Specifications

Supply Circuit Type
DC
Product Or Component Type
holding brake controller
[Us] Rated Supply Voltage
24 V
Range CompatibilityLexium 28 || Lexium 05
Mounting Support55 mm symmetrical DIN rail
