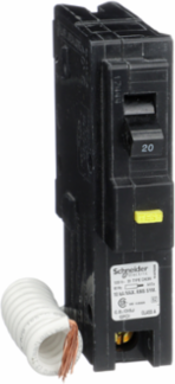

Schneider Electric CHOM120GFI Miniature Circuit Breaker 20A 1-Pole 120VAC GFCI Plug-On 10kA
- MPN: CHOM120GFI
- UPC: 785901896920
- PPN: SCH-CHOM120GFI
CAD
$193.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 2A at 12 VAC. HOM breakers provide 1 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1. inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- This 1-pole, 20-amp breaker is engineered specifically for Square D Homeline load centers, utilizing the industry-standard 1-inch (25mm) space-saving format. This guaranteed physical fit eliminates the guesswork and safety risks associated with "universal" aftermarket breakers, ensuring a secure, manufacturer-approved connection to your bus bar.
- Featuring an intuitive on-device indicator, this breaker simplifies troubleshooting by helping you distinguish between a standard overcurrent trip and a ground fault event. This "so what" feature saves homeowners and service electricians hours of diagnostic time, allowing you to identify if the issue is a faulty appliance or a dangerous wiring leak instantly.
- Engineered for modern "Plug-On Neutral" (PoN) load centers, this breaker connects directly to the neutral bar without the need for a pigtail wire. This creates a much cleaner gutter space in your electrical panel, reduces clutter, and significantly speeds up installation time while providing a more reliable, permanent connection.
- With a 10,000 Amperes Interrupting Rating (AIR), the CHOM120GFI is built to safely clear high-energy short circuits without damaging the surrounding electrical infrastructure. This industrial-grade thermal-magnetic technology provides a critical safety buffer, protecting your home's wiring and connected electronics from catastrophic damage during a fault.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Type
- ground fault protecting class A 6 mA
- Product Or Component Type
- miniature circuit-breaker
- Mounting Mode
- plug-on
- Poles Description
- 1P
- [In] Rated Current
- 20 A
Range Of ProductHomeline
Circuit Breaker ApplicationHACR rated
Short-Circuit Current10 kA
Electrical Connectionscrew clamp terminals
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 1
Awg GaugeAWG 14...AWG 10 aluminum/copper
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212006
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI2212006
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
