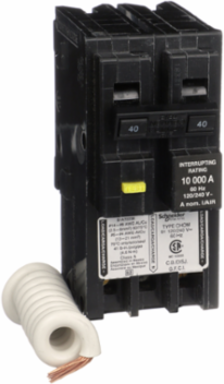

Schneider Electric CHOM240GFI Homeline Mini Circuit Breaker, 40A, 120/240V, 10kA AIR, 2 Pole, Ground Fault
- MPN: CHOM240GFI
- UPC: 785901897033
- PPN: SCH-CHOM240GFI
CAD
$228.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. It includes a ground fault interrupt already installed. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- Built with integrated Class A ground fault circuit interrupter protection, this breaker actively detects hazardous ground faults as low as 6 mA to instantly prevent severe electrical shocks. It is fully CSA certified to meet stringent Canadian electrical codes, providing the essential lifesaving safety layer required for damp locations such as hot tubs, spas, pools, and outdoor receptacles.
- Operating at a 40 Amp continuous line-rated current at 120/240V AC, this double-pole breaker provides the robust thermal-magnetic trip performance required for high-draw residential and light commercial loads. It eliminates the frequent tripping associated with undersized breakers, allowing your heavy-duty mechanical equipment or pool heaters to run efficiently and safely.
- Boasting a 10 kA short-circuit current interrupting rating (AIR), this breaker serves as a high-capacity shield that safely halts massive electrical faults before they can destroy downstream equipment. This ensures that sudden, catastrophic overloads are localized and suppressed, preventing costly damage to your connected appliances and keeping your electrical infrastructure intact.
- Equipped with versatile, heavy-duty screw clamp terminals, this unit accepts a broad wire range from 12 AWG up to 4 AWG in both copper and aluminum conductors. The secure clamping mechanism guarantees excellent surface-to-wire contact, mitigating the risk of high-resistance loose connections that cause dangerous overheating over time.
- Featuring a dedicated, high-visibility yellow "Push-to-Test" button and certified HACR compliance, this breaker allows for rapid on-site safety audits to confirm that the internal mechanism is operating flawlessly. The HACR rating guarantees the unit is fully optimized for heating, air conditioning, and refrigeration applications, removing any guesswork regarding equipment compatibility and code approvals.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- ground fault protecting class A 6 mA
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P
[In] Rated Current40 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 12...AWG 4 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212006
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Circularity ProfileENVEOLI2212006
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
