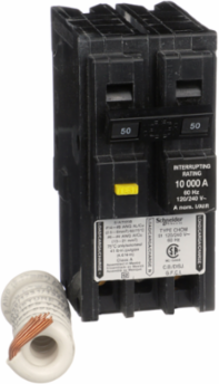

Schneider Electric CHOM250GFI Mini Circuit Breaker, 50A, 2 Pole, 120/240V AC, Ground Fault Class A
- MPN: CHOM250GFI
- UPC: 785901897040
- PPN: SCH-CHOM250GFI
CAD
$246.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. It includes a ground fault interrupt already installed. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- Delivering a robust 50-Amp, 120/240V AC capacity across a two-pole configuration, this breaker is purpose-built for heavy-duty residential appliances. It provides dependable, continuous power routing to high-draw systems like spas, pool heaters, and Level 2 EV charging stations, preventing premature wear and nuisance trips under heavy continuous loads.
- Featuring built-in Class A ground fault protection, this breaker continuously monitors current balance and trips instantly if a leakage to ground as low as 6mA is detected. This critical life-safety feature eliminates the need for expensive, localized GFCI receptacles outdoors, providing comprehensive shock protection and ensuring full compliance with the Canadian Electrical Code (CEC) for wet areas.
- Built with a 10,000 Amperes Interrupting Rating (AIR), this circuit breaker is designed to safely quench massive high-energy short circuits without exploding or damaging the panel interior. This high-capacity thermal-magnetic trip mechanism acts as a reliable shield for your branch circuit wiring, drastically reducing the risk of electrical fires caused by downstream cable failures.
- This breaker utilizes Schneider's innovative plug-on neutral design, which connects directly to the panel s neutral bar without a pigtail wire. By eliminating the extra wiring step and crowding in the gutter space, it slashes installation time, improves cabinet airflow, and creates a clean, easily traceable, and professional-looking installation inside the enclosure.
Documentation & Downloads
Specifications
Key Specifications
| Circuit Breaker Application | HACR rated |
|---|---|
| Circuit Breaker Type | ground fault protecting class A 5 mA |
| Range Of Product | Homeline |
| Electrical Connection | screw clamp terminals |
| Product Or Component Type | miniature circuit-breaker |
| Mounting Mode | plug-on |
|---|---|
| Short-Circuit Current | 10 kA |
| Poles Description | 2P |
| [In] Rated Current | 50 A |
| [Ue] Rated Operational Voltage | 120/240 V AC |
Complementary
| Number Of Spaces Required | 2 |
|---|
| Awg Gauge | AWG 12...AWG 4 aluminum/copper |
|---|
Offer Sustainability
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information |
|---|---|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP2212006 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Circularity Profile | ENVEOLI2212006 |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Environment
| Product Certifications | CSA |
|---|
| Ambient Air Temperature For Operation | 40 °C |
|---|
