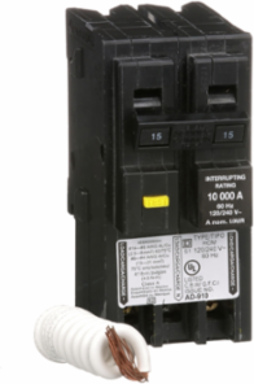

Square D HOM215GFI Mini circuit breaker, Homeline, 15A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL
- MPN: HOM215GFI
- UPC: 785901303190
- PPN: SCH-HOM215GFI
CAD
$510.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

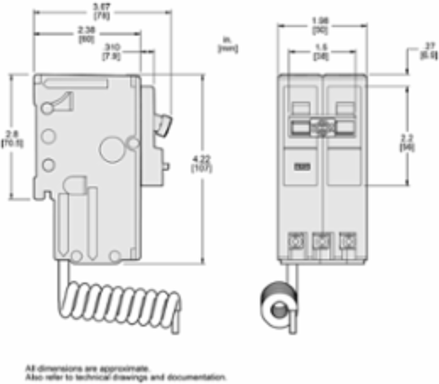

Depth2.98 in
Complementary Attributes
- Line Rated Current
- 15 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, SC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.021048769285644583, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.10455334181851497, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 486 kg CO2 eq., 485.6578321951684
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- 1 x 12 AWG...4 AWG ( aluminium )1 x 14 AWG...6 AWG ( copper )
- Circuit Breaker Type
- ground fault protecting class A 6 mA
- Energy Efficiency Optimized
- False
- Number Of Poles
- 2P
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Homeline
- Software Version
- v6.2.5-6
- Tightening Torque
- 4.6-4.6 N.m 2.5-10 mm² (16 AWG...14 AWG)4.6-4.6 N.m 4-20 mm² (12 AWG...4 AWG)
- Pep Code
- ENVPEP2510002EN
- Pep Verification Date
- 2025-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 41
- Width Nominal
- 2 in
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 530.703 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Consumer, Contractor, Electrician
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.8754452443219833
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.311427382181037
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2510002EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Electrical Connectionscrew clamp terminals
Mounting Modeplug-in
Number Of Spaces Required2
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint492 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1068.72
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal3.13 in
Certificate AgencyUL Listed
Short-circuit Current10 kA
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 40 °C
- Environmental Disclosure
- ENVPEP2510002EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2510002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint491.9703069327756
Circularity ProfileENVEOLI2510002EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductHomeline
Contractual Warranty Attributes
- Warranty Period
- Lifetime
WarrantyLifetime
