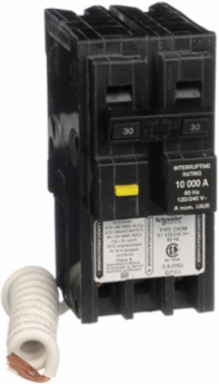

Schneider Electric CHOM230GFI Mini Circuit Breaker, 30A, 2 Pole, 120/240V AC, 10kA AIR, Ground Fault Class A
- MPN: CHOM230GFI
- UPC: 785901897019
- PPN: SCH-CHOM230GFI
CAD
$246.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. It includes a ground fault interrupt already installed. CHOM Homeline miniature circuit breakers are CSA certified.
Features
- Equipped with advanced Class A ground fault circuit interrupter protection, this breaker actively monitors current balance and trips within milliseconds if a ground leak as low as 6 milliamperes is detected. This critical safety feature provides robust protection against electrical shock in high-risk residential areas like kitchens, bathrooms, hot tubs, and outdoor receptacles, ensuring full compliance with the Canadian Electrical Code (CEC).
- Featuring a 2-pole, 30-amp design with a 10,000 Amperes Interrupting Rating (AIR), this breaker is engineered to safely distribute and protect 120/240V configurations. It is the ideal choice for heavy-use, dedicated residential circuits such as hot tubs, pool pumps, workshops, and wellness equipment, shielding your expensive machinery from severe overloads and short circuits.
- Engineered with time-saving plug-on neutral technology, the breaker connects directly to the panel s neutral bar without requiring a traditional pigtail wire. This creates a much cleaner, un-cluttered wire gutter inside your enclosure, allowing residential contractors to rapidly complete installations and easily trace circuits during routine maintenance.
Documentation & Downloads
Specifications
Key Specifications
| Circuit Breaker Application | HACR rated |
|---|---|
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Range Of Product | Homeline |
| Electrical Connection | screw clamp terminals |
| Product Or Component Type | miniature circuit-breaker |
| Mounting Mode | plug-on |
|---|---|
| Short-Circuit Current | 10 kA |
| Poles Description | 2P |
| [In] Rated Current | 30 A |
| [Ue] Rated Operational Voltage | 120/240 V AC |
Complementary
| Number Of Spaces Required | 2 |
|---|
| Awg Gauge | AWG 12...AWG 4 aluminum/copper |
|---|
Offer Sustainability
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information |
|---|---|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP2212006 |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Circularity Profile | ENVEOLI2212006 |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Environment
| Product Certifications | CSA |
|---|
| Ambient Air Temperature For Operation | 40 °C |
|---|
