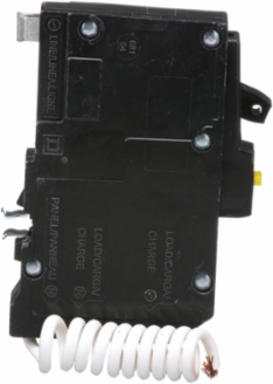

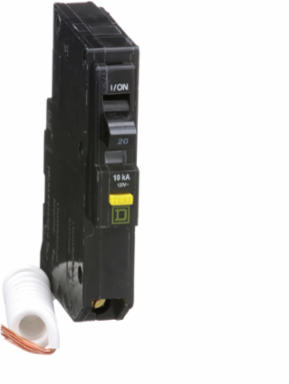

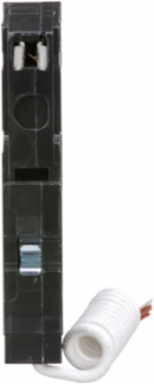

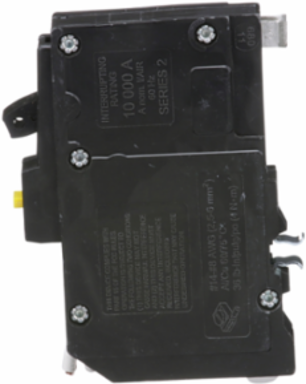

Schneider Electric QO120GFI Miniature Circuit Breaker 20A 1 Pole 120VAC Ground Fault 6mA

MPN: QO120GFI
UPC: 785901255079
PPN: SCH-QO120GFI

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$169.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Miniature Circuit Breaker 20A 1 Pole 120VAC Ground Fault 6mA

Features

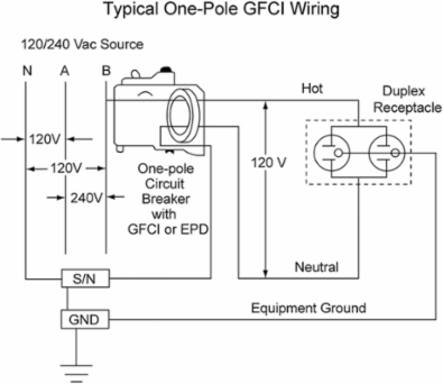

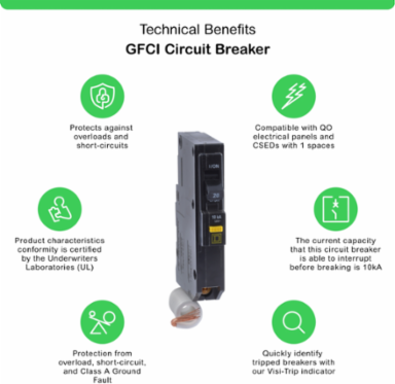

Engineered with a highly sensitive 6mA ground-fault threshold, the QO120GFI actively monitors current balance to detect hazardous ground faults instantly. By cutting off power in milliseconds upon detecting a fault, it mitigates severe shock risks in wet or high-risk residential and light commercial areas, satisfying strict NEC guidelines for kitchens, bathrooms, and outdoor receptacles.
This breaker features the patented Square D VisiTripTM visual indicator, a high-visibility window that instantly flags the tripped state with a bright color marker. This user-friendly feature eliminates the guesswork of checking every toggle handle, reducing troubleshooting downtime and helping service electricians or homeowners safely restore power faster.
Designed strictly for exclusive 3/4-inch space constraints, this single-pole plug-in breaker fits perfectly into QO load centers, NQ panelboards, and Speed-DTM switchboard interiors. Its physical footprint prevents incorrect installation or cross-brand mating, safeguarding your commercial electrical infrastructure while simplifying routine modernizations and panel upgrades.
Built with an over-center, trip-free toggle mechanism, the QO120GFI provides premium dual-protection with a 10 kA interrupting rating for high-fault currents alongside thermal time-delay overcurrent protection. This quick-make, quick-break architecture handles standard inductive inrush currents smoothly, eliminating frustrating nuisance tripping while effectively extending the operational life of connected appliances.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

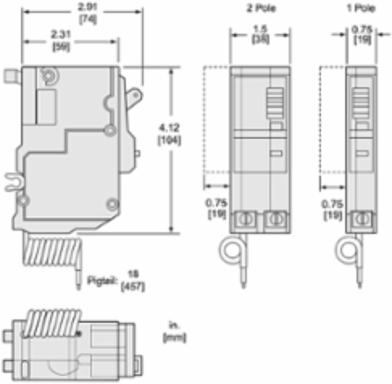

Depth	74 mm

Compliance	TAA Compliant

Complementary Attributes

Line Rated Current	20 A

Important Information Attributes

Persona Type Ids	EU, EUA, LC, OM, SC
Tightening Torque	4-4 N.m, 4.6-4.6 N.m 4-20 mm² (12 AWG...4 AWG)
Carbon Footprint Of The Distribution Phase [A4]	0.0612198278, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0016705291, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	37 kg CO2 eq., 37.375
Local Publishable Date	2026-04-14
Stocking Flag	Y
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2212005
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Circuit Breaker Application	not rated
Electrical Connection	pressure plate
Mounting Mode	plug-in
Number Of Spaces Required	1
Product Or Component Type	miniature circuit-breaker
Returnability	Yes
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Mexico
Energy Model - Use [B6]	Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal	105 mm
[Ue] Rated Operational Voltage	120 V AC
Package Weight(Lbs)	231.332 g
Warranty (In Months)	18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	455.05
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	5.7146
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	503.15
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	472.94
Water Pollution (M3) Operational Energy Use [B6]	1842.6

Persona Type Names	End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Certificate Agency	UL Listed, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0495317797
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 1.8552179673
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	PPIBS
Use Carbon Footprint	37.375
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Residential
Awg Gauge	14 AWG...8 AWG copper12 AWG...8 AWG aluminium
Circuit Breaker Type	ground fault protecting class A 6 mA
Energy Efficiency Optimized	False
Number Of Poles	1P
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	QO
Software Version	EIME v5.9.4
Total Lifecycle Carbon Footprint	39 kg CO2 eq.
Pep Code	ENVPEP2212005EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; consumption mix, at consumer; 120V; US
Width Nominal	19 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Operational Energy Use [B6]	3173.9
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	37.375
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	472.94
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	30.218
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	30.218
Customs Code	8536200040

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	39.3426401039
Circularity Profile	ENVEOLI2212005
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2212005EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent external review

Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	40 °C
Environmental Disclosure	ENVPEP2212005EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
