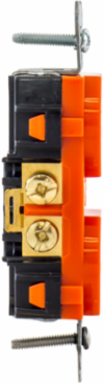

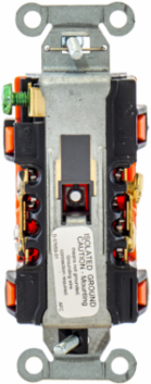

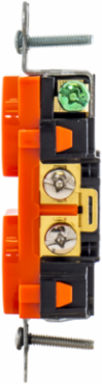

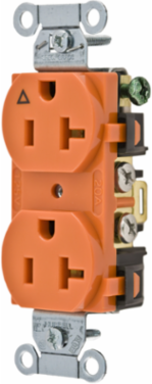

Hubbell Wiring Device-Kellems IG5352 Heavy Duty Duplex Receptacle 20A 125V Isolated Ground Orange
- MPN: IG5352
- UPC: 783585146799
- PPN: HBL-IG5352
CAD
$32.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, Isolated Ground, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Orange, Single Pack
Features
- Triangle marking on face indicates isolated ground
- Slender/compact design
- Isolated Ground
- Smooth Face
Documentation & Downloads
Specifications
Key Specifications
| Application | Hubbell-Pro Heavy Duty |
|---|---|
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Traditional Duplex |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Series | Hubbell-PRO |
| Type | Isolated Ground |
| Display Size | Standard Sized Product |
| Length | 3.28 in |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating | 125 V |
| Wattage | 2500 W |
| Wire Size | #12 AWG to #10 AWG |
| Carton Quantity | 10 EA |
| Color | Orange |
|---|---|
| Horsepower - Maximum | 1 |
| Material | Nylon |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact °C |
| Style | Smooth Face |
| UPC | 783585146799 |
| Height | 1.07 in |
| Width | 1.57 in |
| Connectivity | Back and Side Wired Screw Terminals |
| Current Rating | 20 A |
| Phase | Single Phase |
| Voltage Rating Description | 125 V |
| Number Of Wires | 3-Wire |
| Nema Rating | 5-20R |
