Hubbell Wiring Device-Kellems

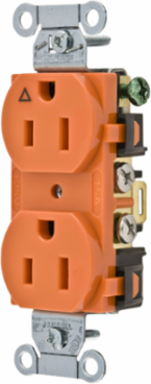

Hubbell Wiring Device-Kellems IG15CR Commercial Grade Duplex Receptacle, 15A 125V, Orange, 2-Pole 3-Wire

  • MPN: IG15CR
  • UPC: 783585147550
  • PPN: HBL-IG15CR

CAD

$16.85

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, Corrosion Resistant, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Back and Side Wired, Orange.

Features

  • Triangle marking on face indicates isolated ground
  • Smooth face
  • Triple wipe contacts

Documentation & Downloads

Specifications

Dimensions

Dimensions1.32 in x 0.83 in x 3.28 in
Height3.28 in
Width0.83 in
Display SizeStandard Sized Product
Length1.32 in

Certifications and Compliance

Nema Rating5-15R

Conductor Related

Number Of Wires3-Wire
Wire Size#14 AWG to #10 AWG

General

ApplicationCommercial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Item TypeTraditional Duplex
Material - Mounting HardwareScrew Mounting
OEM Brand NameHubbell Wiring Device-Kellems
SeriesCommercial Specification Grade
TypeStandard Duplex
ColorOrange
Horsepower - Maximum0.5
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleSmooth Face
UPC783585147550

Electrical Ratings

Amperage Rating15 A
Current / Amperage Rating15 A
Dielectric StrengthWithstands 2,000V minimum
Voltage Rating125 V
Wattage1875 W
ConnectivityBack and Side Wired Screw Terminals
Current Rating15 A
PhaseSingle Phase
Voltage Rating Description125 V

Logistics

Carton Quantity10 EA
Commercial Grade Duplex Receptacle, 15A 125V, Orange, 2-Pole 3-Wire
