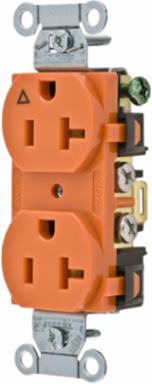

Hubbell Wiring Device-Kellems IG20CR Commercial Grade Orange Duplex Receptacle, 20A 125V, 2-Pole 3-Wire
- MPN: IG20CR
- UPC: 783585147628
- PPN: HBL-IG20CR
CAD
$18.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, Corrosion Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Orange.
Features
- Triangle marking on face indicates isolated ground
- Smooth face
- Triple wipe contacts
Documentation & Downloads
Specifications
Dimensions
- Dimensions
- 1.32 in x 1.06 in x 3.28 in
- Height
- 3.28 in
- Width
- 1.06 in
Display SizeStandard Sized Product
Length1.32 in
Certifications and Compliance
- Nema Rating
- 5-20R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#12 AWG to #10 AWG
General
- Application
- Commercial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Commercial Specification Grade
- Type
- Standard Duplex
ColorOrange
Horsepower - Maximum1
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleSmooth Face
UPC783585147628
Electrical Ratings
- Amperage Rating
- 20 A
- Current / Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 2500 W
ConnectivitySide Wired
Current Rating20 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
