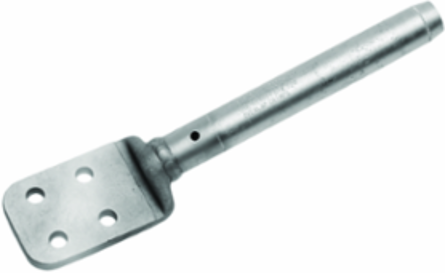

Burndy BYNA451R15HHT HYLUG Compression Terminal, Aluminum, 3.22 Inch Pad Width, 15.1 Inch Length
- MPN: BYNA451R15HHT
- UPC: 781810497449
- PPN: BUR-10101659
CAD
$1031.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
BURNDY; HYLUG; BYNA-R-HHT, Kit; Features: Single pad Full tension compression deadend for 250 Deg C rated ACSS transmission lines up to and including 230kV; Standard 15 Deg NEMA tap pad provides either 0 Deg or 30 Deg tap when BYNA-R15 terminal is used; with Hardware; For ACSS Conductor; RoHS Under Investigation.
Documentation & Downloads
Specifications
Dimensions
- Dimension - D inch
- 3.95 in
- Dimension - Hole Size fraction
- 14/25
- Dimension - Length Overall inch
- 15.1 in
- Dimension - Outside Diameter inch
- 1.8 in
Dimension - F Width Center to Center inch1.75 in
Dimension - Hole Size inch0.56 in
Dimension - N inch0.62 in
Dimension - Pad Width inch3.22 in
Conductor Related
- Conductor - ACSS Str Size
- 715.5 (24/7) kcmil;715.5 (26/7) kcmil;715.5 (30/19) kcmil;795 (42/7) kcmil;795 (20/7) kcmil;795 (45/7) kcmil;795 (22/7) kcmil;795 (24/7) kcmil;795 (54/7) kcmil;795 (26/7) kcmil;795 (30/19) kcmil
Conductor - ACSS Str Size Range715.5 (24/7) kcmil-795 (30/19) kcmil
General
- Connector Type
- Terminal
- Material
- Aluminum
- UPC
- 781810497449
Item Type4D
Physical Attribute - Number of Holes4
UPC 12 Digit7818104974499
Certifications and Compliance
- Certification - CSA Approved
- No
Standards - RoHS Compliance StatusCM
