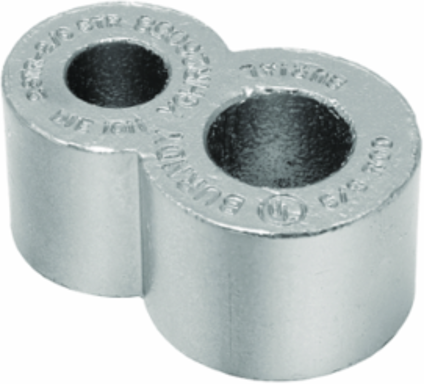

Burndy YGHR26C58TN High Strength Compression Ground Rod Tap Connector, 5/8 Inch, Copper, UL Listed
- MPN: YGHR26C58TN
- UPC: 781810226117
- PPN: BUR-25018958
CAD
$87.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Strength IrreversibleCompression Ground RodTap Connectors.
Documentation & Downloads
Specifications
Key Specifications
| Connector Type | Tap |
|---|---|
| Item Type | 4D |
| Physical Attribute - Number of Crimps Required | 1 |
| Plating Type | Tin - Electro Plated |
| Type | Taps |
| UPC 12 Digit | 7818102261177 |
| Dimension - B Length inch | 0.88 in |
| Dimension - Height fraction | 1-32/33 in |
| Dimension - L Length Overall mm | 22 mm |
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Rod Size | 5/8 in |
| Certification - CSA Approved | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - cULus | No |
| UL Listed | Yes |
| Die Index | 998;1012 |
|---|---|
| Material | Copper |
| Plated | Y |
| Trade Name | HYTAIL™ |
| UPC | 781810226117 |
| Dimension - B Length fraction | 22/25 in |
| Dimension - Ground Rod Size | 5/8 |
| Dimension - Height inch | 1.97 in |
| Dimension - Length Overall inch | 0.88 in |
| Conductor - Copper Str Size Range | 2 AWG-2/0 AWG |
| Conductor - Rod Size Range | 5/8 in |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
