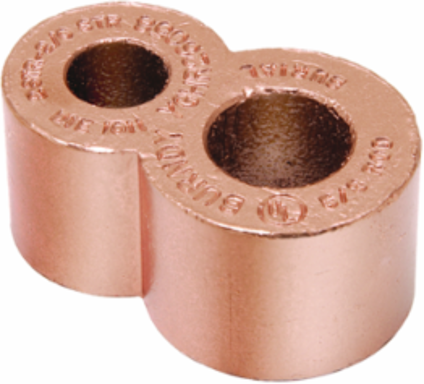

Burndy YGHR26C12 High Strength Compression Ground Rod Tap Connector, 1/2 in, UL Listed
- MPN: YGHR26C12
- UPC: 781810220702
- PPN: BUR-279143
CAD
$87.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
High Strength IrreversibleCompression Ground RodTap Connectors.
Documentation & Downloads
Specifications

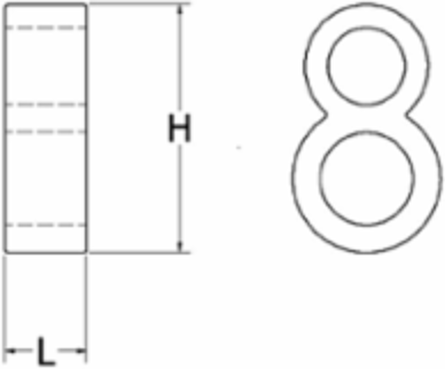

Dimensions
| Dimension - B Length fraction | 22/25 in |
|---|---|
| Dimension - Ground Rod Size | 1/2 |
| Dimension - Height inch | 1.94 in |
| Dimension - Length Overall inch | 0.88 in |
| Dimension - B Length inch | 0.88 in |
|---|---|
| Dimension - Height fraction | 1-47/50 in |
| Dimension - L Length Overall mm | 22 mm |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Listed Direct Burial | Yes |
| Certification - cULus | No |
| UL Listed | Yes |
| Certification - ETL | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
Conductor Related
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 ;2/0 AWG |
|---|---|
| Conductor - Rod Size | 1/2 in |
| Conductor - Copper Str Size Range | 2 AWG-2/0 AWG |
|---|---|
| Conductor - Rod Size Range | 1/2 in |
General
| Connector Type | Tap |
|---|---|
| Material | Copper |
| Physical Attribute - Number of Crimps Required | 1 |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Y |
| Type | Taps |
| UPC 12 Digit | 7818102207022 |
| Die Index | 998;1012 |
|---|---|
| Oxide Inhibitor Type | Penetrox E |
| Plated | N |
| Precrimp Die | UPRECRIMP12 |
| Trade Name | HYTAIL™ |
| UPC | 781810220702 |
Logistics
| Minimum Pack Quantity | 1 |
|---|
