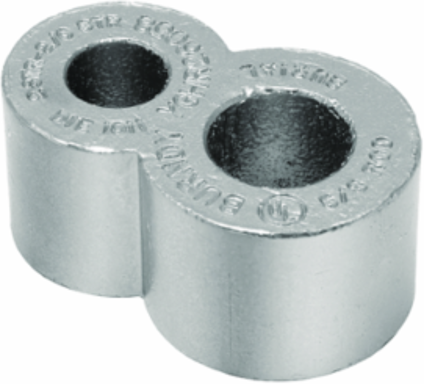

Burndy YGHR29C58TN High Strength Irreversible Compression Ground Rod Tap Connector, 5/8 Inch Rod Size, 4/0 AWG
- MPN: YGHR29C58TN
- UPC: 781810176054
- PPN: BUR-25015243
CAD
$100.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Strength IrreversibleCompression Ground RodTap Connectors.
Documentation & Downloads
Specifications
Key Specifications
| Connector Type | Tap |
|---|---|
| Item Type | 4D |
| Physical Attribute - Number of Crimps Required | 1 |
| Plating Type | Tin - Electro Plated |
| Type | Taps |
| UPC 12 Digit | 7818101760544 |
| Dimension - B Length inch | 0.88 in |
| Dimension - Height fraction | 2-7/50 in |
| Dimension - L Length Overall mm | 22 mm |
| Conductor - Copper Str Size | 4/0 AWG;250 kcmil |
| Conductor - Rod Size | 5/8 in |
| Certification - CSA Approved | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - cULus | No |
| UL Listed | No |
| Die Index | 998;1012 |
|---|---|
| Material | Copper |
| Plated | Y |
| Trade Name | HYTAIL™ |
| UPC | 781810176054 |
| Dimension - B Length fraction | 22/25 in |
| Dimension - Ground Rod Size | 5/8 |
| Dimension - Height inch | 2.14 in |
| Dimension - Length Overall inch | 0.88 in |
| Conductor - Copper Str Size Range | 4/0 AWG-250 kcmil |
| Conductor - Rod Size Range | 5/8 in |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
