Weidmuller 1018790000 IE-FCM-RJ45-C
- MPN: 1018790000
- PPN: WDM-1018790000
CAD
$42.21
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

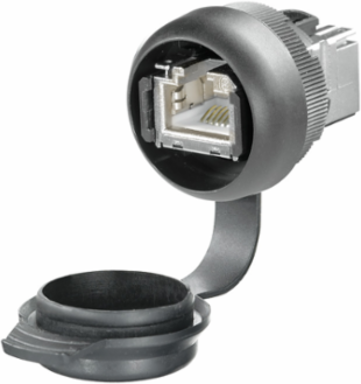

FrontCom Micro RJ45 coupling
Documentation & Downloads
Specifications
Additional
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Plugging cycles
- 750
- Dielectric strength contact/contact
- ≥ 1000 V AC/DC
- Protection degree
- IP65, in closed state
- Connection 1
- RJ45
- Type
- FrontCom Micro RJ45 coupling
- Height
- 44 mm
- Net weight
- 25 g
- Housing main material
- PA UL 94 V0
- Shielding
- 360° shield contact
- Connector standard
- IEC 60603-7-51
- Certificate no. (cULus)
- E316369
- REACH SVHC
- Lead 7439-92-1
PoE / PoE+conforming to IEEE 802.3at
Dielectric strength contact/shield≥ 1500 V AC/DC
Operating temperature-40 °C to 70 °C
Tightening torque fixing nut2 Nm
Connection 2RJ45
Width29.5 mm
Depth42.9 mm
Wall thickness1 - 3 mm
Contact surfaceGold over nickel
Mounting typeCabinet, Distribution box
ROHSConform
ApprovalsCULUS
Colourblack
