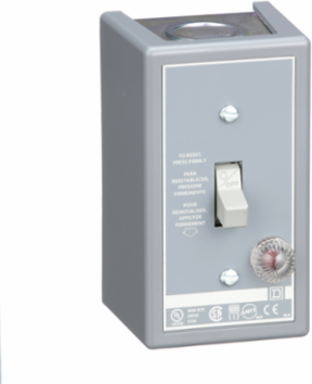

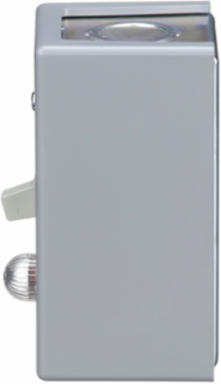

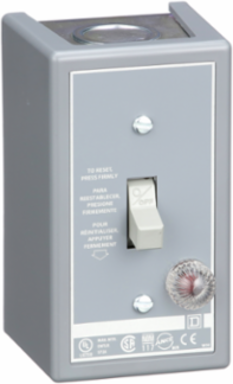

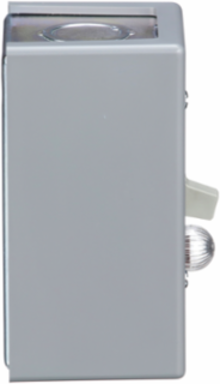

Square D 2510FG1P Manual Starter 1 HP, 16A, 1 Pole, NEMA 1 Enclosure
- MPN: 2510FG1P
- UPC: 785901553946
- PPN: SCH-2510FG1P
CAD
$233.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

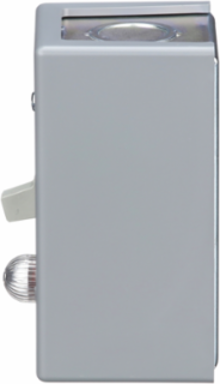

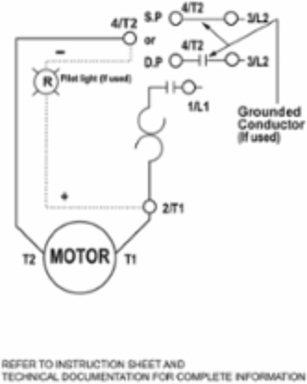

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.79 lb. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified.
Features
- Engineered specifically for fractional horsepower single-phase motors, this 1-pole manual motor starter supports a continuous current rating of 16A and delivers up to 1 HP capacity at 115, 230, and 277 VAC. This precise power matching prevents over-fusing and ensures robust, reliable manual ON/OFF control for dedicated utility loads like commercial exhaust fans, small conveyor lines, and sump pumps.

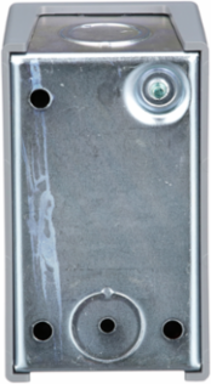

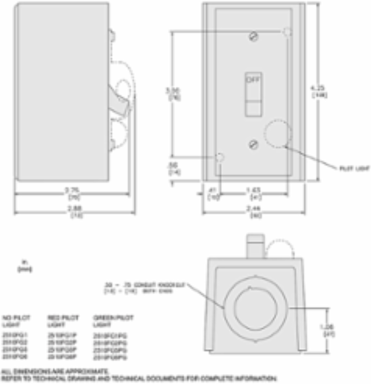

- Housed in a compact NEMA 1 general-purpose plastic enclosure, this surface-mounting device is designed for safe, indoor operation where dust, dirt, and moisture are not extreme. The clean, space-saving design measures just 4.25" H x 2.44" W x 2.75" D and features integrated 0.5" and 0.75" knockouts on both the top and bottom, dramatically reducing installation time and streamlining conduit routing in tight commercial or industrial spaces.

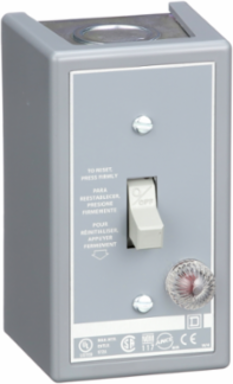

- Equipped with an integrated red pilot light indicator, this manual motor starter gives maintenance technicians and operators instant visual confirmation when the circuit is active and running. The heavy-duty toggle switch provides a crisp, positive mechanical action for intuitive control, while the manual reset mechanism prevents automatic, unexpected motor restarts after a thermal trip event to enhance workplace safety.
- This fractional horsepower starter features heavy-duty screw clamp terminals designed to establish tight, vibration-resistant electrical connections for maximum uptime. The terminal block natively accepts standard industrial copper wire sizes from AWG 14 down to AWG 12, allowing for seamless integration with existing field wiring without requiring specialized crimping tools or adapters.
- Built by industry leader Schneider Electric (Square D), this manual motor starter is fully UL Listed (File E42243) and CSA Certified, ensuring it satisfies rigid Canadian safety regulations and local electrical inspection requirements. Backed by a standard 18-month contractual warranty, this commercial-grade protector eliminates the regulatory headaches and premature failure risks associated with unbranded or light-duty alternatives.
Documentation & Downloads
Specifications
Key Specifications
- Thermal Overload Type
- melting alloy
- Product Or Component Type
- Single Unit Manual Starter
Range Of ProductF
Complementary
- Motor Starter Type
- non reversing
- Height
- 4.25 in
- Electrical Connection
- screw clamp terminals
- [In] Rated Current
- 16 A
- Awg Gauge
- AWG 14...AWG 12 copper
- Depth
- 2.75 in
- Network Number Of Phases
- 1 phase
- [Ue] Rated Operational Voltage
- 277 V AC
Resetmanual
Poles Description1P
Cable Entry0.5" and 0.75" knock-outs (top and bottom)
Local Signallingred indicator
Width2.44 in
Motor Power Hp1 hp 115 V AC || 1 hp 230 V AC || 1 hp 277 V AC
Net Weight0.36 kg
Control Typetoggle switch
Environment
- Product Certifications
- UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Nema Degree Of ProtectionNEMA 1 plastic standard size
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Not compliant
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
