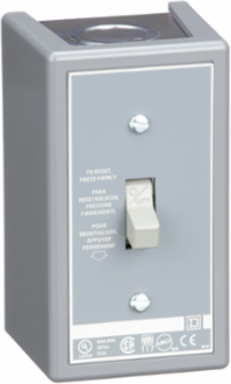

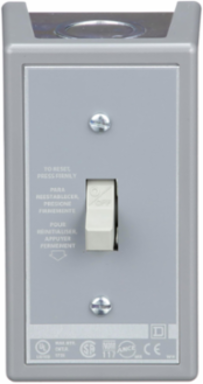

Schneider Electric 2510FG1 Manual Motor Starter, 1 HP, 16A, NEMA 1, Toggle Switch, 4.25 Inch Tall
- MPN: 2510FG1
- UPC: 785901553939
- PPN: SCH-2510FG1
- UNSPSC: 39121521
CAD
$155.45
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

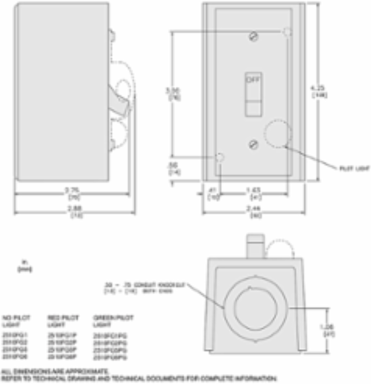

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.79 lb. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.
Features
- Housed in a rugged, surface-mounted steel enclosure, this manual starter is specifically designed for indoor environments where dust and debris are a concern. The compact, durable housing protects the internal switch mechanism from physical impact, making it the ideal solution for protecting small machine tools, fans, and pumps in commercial or residential utility spaces.
- Engineered to handle fractional horsepower loads up to 1 HP, this versatile starter provides a reliable manual ON/OFF interface for small pumps, fans, and conveyor motors. By using a dedicated industrial-grade switch instead of a standard light switch, you prevent premature contact wear and ensure your motor receives consistent, clean power delivery during every startup cycle.
- This starter features a specialized thermal overload block designed to accept Schneider Electric Type thermal units (sold separately). This critical safety feature monitors the heat generated by the motor's current draw; if the motor stalls or becomes overloaded, the starter automatically trips to cut power. This proactive defense saves you thousands in equipment replacement costs by preventing catastrophic winding failure.
- The intuitive, heavy-duty toggle lever provides a crisp, tactile "snap" action that confirms the motor's status at a glance. Unlike complex digital controllers, this purely mechanical interface is built for high-cycle reliability in demanding environments, allowing operators to quickly and safely cycle equipment without needing to navigate menus or touchscreens.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 2.75 in |
| Weight | 344.73 g |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 1 hp 115 V AC, 1 hp 230 V AC, 1 hp 277 V AC |
|---|---|
| Ue Rated Operational Voltage | 277 V AC |
| Line Rated Current | 16 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.5381707849419894 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 2.020236701637095 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Awg Gauge | 14 AWG...12 AWG copper |
| Control Type | toggle switch |
| Energy Efficiency Optimized | False |
| Motor Starter Type | non reversing |
| Phase | 1 phase |
| Product Or Component Type | Single Unit Manual Starter |
| Reset | manual |
| Software Version | v6.2.5-6 |
| Thermal Overload Type | melting alloy |
| Database Version | 2024-01 |
| Height Nominal | 4.25 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Pep End Of Validity Date Calculated | 2030-09-01 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.09962269282316683, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.04124494909792412, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 4 kg CO2 eq., 4.430371808898552 |
| Local Publishable Date | 2026-09-04 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cable Entry | 0.5" and 0.75" knock-outs (top and bottom) |
| Electrical Connection | screw clamp terminals |
| Local Signalling | no indicator |
| Number Of Poles | 1P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | F |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 7 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 2.44 in |
| Customs Code | 8536504000 |
| Functional Unit Description | When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 74 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 7.129646937398727 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2507018EN |
| Nema Degree Of Protection | NEMA 1 Plastic standard size |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2507018EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | F |
| Product Or Component Type | Single Unit Manual Starter |
|---|
