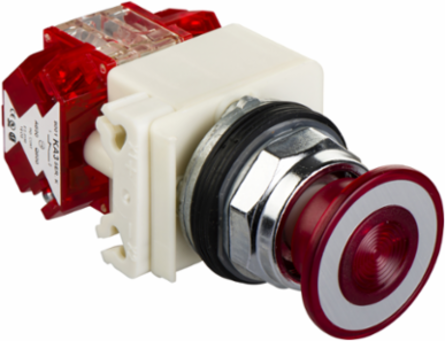

Square D 9001KR8P38LRRH25 Illuminated Push Button, 30 mm, Red Mushroom, LED, 120V
- MPN: 9001KR8P38LRRH25
- UPC: 785901528111
- PPN: SCH-9001KR8P38LRRH25
CAD
$374.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for efficiency and ease of use, this illuminated push button from Schneider Electric features a striking red mushroom design that is instantly recognizable. At 30 mm, it provides a clear and intuitive interface for control applications, ensuring reliable operation even in demanding environments. The integrated LED indicator operates at 120V, offering both visibility and functionality for automation and control purposes. Its robust construction makes it an excellent choice for enhancing safety and operational reliability in various applications within the industrial sector.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 120 V
- Contacts Type And Composition
- 1 NC late break + 1 NC
- Contact Operation
- late-break
- Mounting Diameter
- 30 mm
- Type Of Operator
- pull: spring return, center: stay put, push: spring return
- Light Source Colour
- Red
- Cap/Operator Or Lens Colour
- Red
- Operator Additional Information
- screw-on plastic
- Product Certifications
- NEMA 1/2/3/3R/4/6/12/13, CSA LR 25490 class 3211 03, UL Listed (E42259), CE
- Reach Regulation
- Contains SVHC above threshold
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS scope)
- Device Short Name
- K
- Range Of Product
- Harmony 9001K
Rated Operational Current10 A, AC-15 || 10 A, DC-13
Light SourceLED
Product Or Component Typeilluminated push-button
Operator ProfileMushroom 41 mm
Operator Position Information3 positions
Bezel MaterialMetal
Bulb BaseBA 9s
Device PresentationComplete product
Environmental DisclosureENVPEP121006EN
Rohs Exemption InformationYes
China Rohs RegulationX
Mercury FreeYes
Country of OriginMexico
