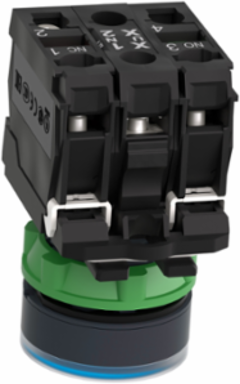

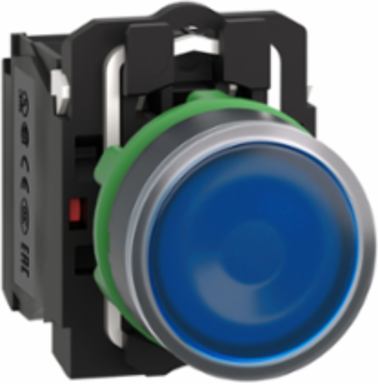

Schneider Electric XB5AW36G5 Illuminated Blue Push Button 22mm, 1NO + 1NC, 110-120V AC

  • MPN: XB5AW36G5
  • PPN: SCH-XB5AW36G5

CAD

$106.62

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This Harmony XB5, illuminated modular blue push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France, Mexico, United States
Depth57 mm

Physical Attributes

Cap Operator Or Lens Color
blue

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Bezel Material
dark grey plastic, dark grey plastic
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Force
3.5 N NC changing electrical state, 3.8 N
Certificate Agency
CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
[Us] Rated Supply Voltage
110...120 V, 110...120 V AC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]
0.01614217468805704, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.015522281639928697, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
0.4 kg CO2 eq., 0.4183380281690141
Local Publishable Date
2026-01-12
Stocking Flag
N
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2404014EN
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
Yes
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Average Percentage Of Recycled Plastic Content
22 %
Compatibility Code
XB5
Contacts Material
silver alloy (Ag/Ni)
Contacts Usage
standard contacts
Device Short Name
XB5
Fixing Collar Material
plastic
Head Type
standard
Light Source
universal LED

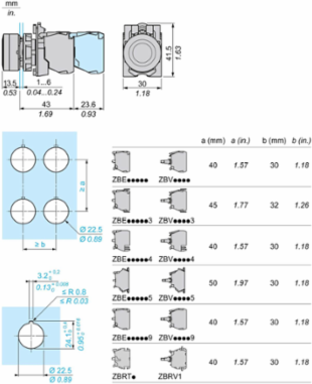

Mounting Diameter
22.5 mm
Operator Additional Information
with plain lens
Overvoltage Category
class II conforming to IEC 60536
Product Availability
Stock - Normally stocked in distribution facility
Product Repair Index
A
Range Of Product
Harmony XB5
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity
1
Shape Of Signaling Unit Head
round
Signalling Type
steady
Supply Voltage Limits
100-132 V AC
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Type Of Operator
spring return
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contacts Composition
1 NO + 1 NC
Pep Code
ENVPEP2404014_V1
Pep Verification Date
2024-06-09
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal
30 mm
[Ui] Rated Insulation Voltage
600 V 3)IEC 60947-1
Cap/Operator Or Lens Colour
blue
Short-circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)
0.05 kg
Take-back
No
Customs Code
8536509035
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable1, no
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1294488413547237
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.39035294117647057
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content13 %
Bulb Baseintegral LED
Contact Operationslow-break
Contacts Type And Composition1 NO + 1 NC
Current Consumption14 mA
Electromagnetic Emissionclass B IEC 55011
Gcr BridgeXB5AWCUST07
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mechanical Durability10000000 cycles
Operating Travel1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Operator Profileblue flush, unmarked
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typeilluminated push-button
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Cap Operator Or Lens Colorblue
Supply Voltage Num 22 Supply Voltage Num110...120 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 &amp; UL 508.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal42 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP66 IEC 60529, IP69, IP69K, IP67
Take Back
No
China Rohs Regulation
X
Carbon Footprint
0.9698042670281941
Environmental Disclosure
ENVPEP2404014_V1
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2024-06-09
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level13 %
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2404014_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
illuminated push-button
Range Of ProductHarmony XB5

ETIM

ETIM 8
EC001028
ETIM 9EC001028

Surge Protection And Filtering Attributes

Surge Withstand
1 kV IEC 61000-4-5

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Overview Attributes

Device Presentation
complete product
