Schneider Electric XB4BW33B5 Harmony XB4 22mm Green Illuminated Push Button, 1NO + 1NC, 24V AC/DC
Schneider Electric XB4BW33B5 Harmony XB4 22mm Green Illuminated Push Button, 1NO + 1NC, 24V AC/DC
- MPN: XB4BW33B5
- PPN: SCH-XB4BW33B5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$106.62/ EA
Description

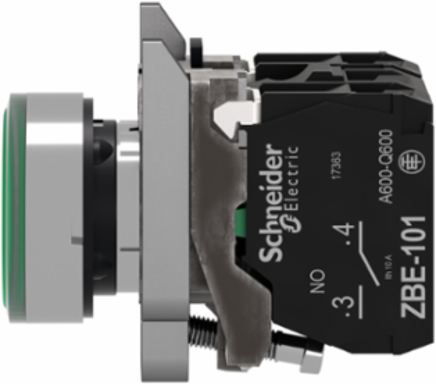

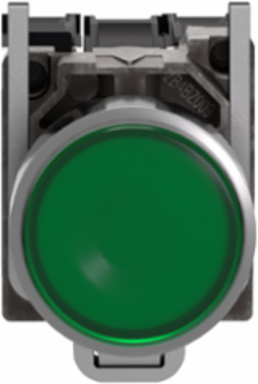

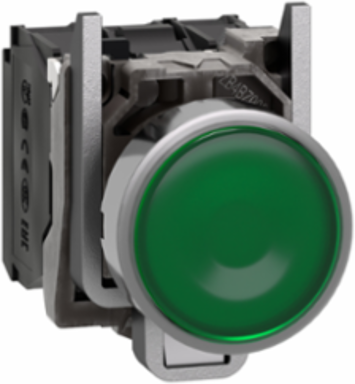

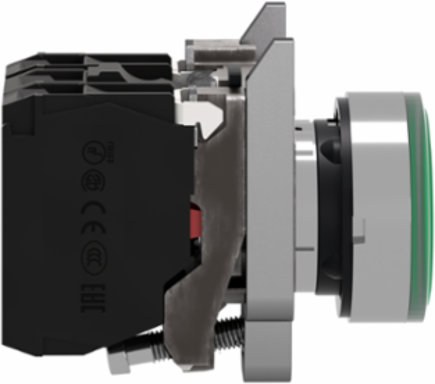

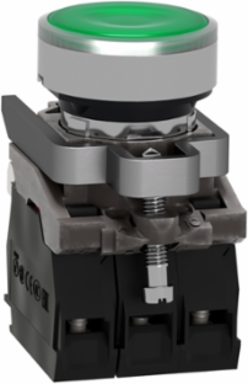

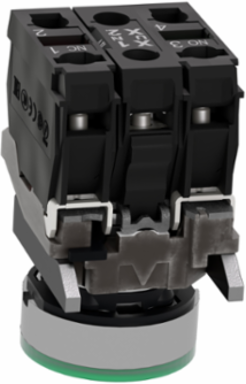

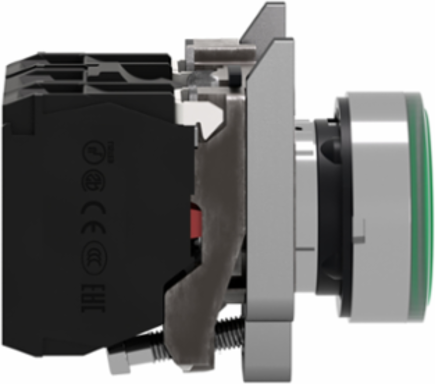

This Harmony XB4 illuminated modular green push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || DNV || BV || GL || UL listed || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || UL 508 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
Ik Degree Of ProtectionIK06 conforming to IEC 50102
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Electrical Shock Protection Classclass I IEC 60536
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Complementary
- Contacts Usage
- standard contacts

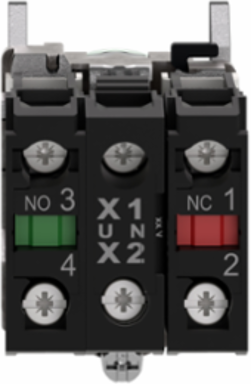

- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Device Presentation
- complete product
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Surge Withstand
- 1 kV IEC 61000-4-5
- Signalling Type
- steady
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

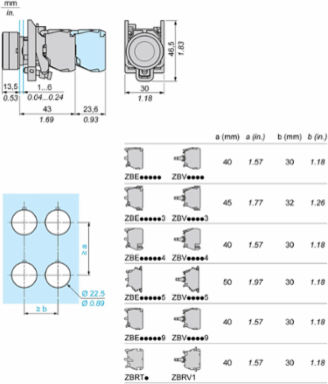

- Depth
- 57 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height47 mm
Operating Force3.5 N NC changing electrical state || 3.8 N
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Net Weight0.097 kg
Current Consumption18 mA
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Service Life100000 h at rated voltage and 25 °C
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability10000000 cycles
Width30 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Specifications
- Operator Additional Information
- with plain lens
- Light Source
- universal LED
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
- Contacts Type And Composition
- 1 NO + 1 NC
- Bezel Material
- chromium plated metal
- Operator Profile
- green flush
- [Us] Rated Supply Voltage
- 24 V AC/DC 50/60 Hz
Range Of ProductHarmony XB4
Mounting Diameter22 mm
Product Or Component Typeilluminated push-button
Fixing Collar Materialzamak
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Sale Per Indivisible Quantity1
Contact Operationslow-break
Device Short NameXB4
Bulb Baseintegral LED
