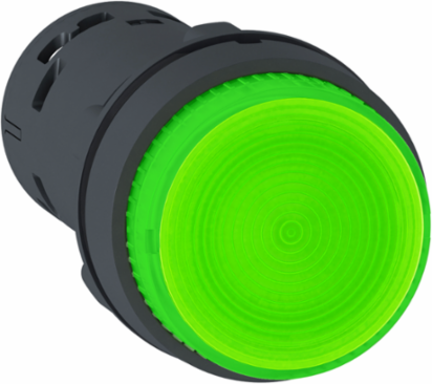

Schneider Electric XB7NW3361 Harmony XB7 Illuminated Green Push Button 22mm, Spring Return, 230V
- MPN: XB7NW3361
- PPN: SCH-XB7NW3361
CAD
$177.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB7, illuminated projecting monolithic green push button operates with a spring return / impulse mechanism, is supplied with 230V AC, uses a BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB7
- Mounting Diameter
- 22 mm
- Device Presentation
- monolithic product
- Device Short Name
- XB7
Light Sourceincandescent (bulb not included)
Product Or Component Typeilluminated push-button
Sale Per Indivisible Quantity10
Complementary
- Height
- 29 mm
- Short-Circuit Protection
- 4 A cartridge fuse gG IEC 60947-5-1
- Positive Opening
- without
- Type Of Operator
- spring return
- Net Weight
- 0.022 kg
- Electrical Durability
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Contacts Type And Composition
- 1 NO
- Signalling Type
- steady
- Contact Operation
- slow-break
- Operator Profile
- green projecting, unmarked
- Compatibility Code
- XB7
- Width
- 29 mm
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
- Bulb Base
- BA 9s
Terminals Description Iso N°1(13-14)NO
Fixing Center>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Fixing Modefixing nut beneath head 2-2.4 N.m
Shape Of Signaling Unit Headround
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Supply Voltage Limits195-264 V AC
Mechanical Durability300000 cycles
Electrical Reliabilityλ <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
Depth57.5 mm
Shape Of Screw Headcross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Us] Rated Supply Voltage230 V AC
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Nema Degree Of Protection
- NEMA 12 UL 50 E || NEMA 3 UL 50 E
- Protective Treatment
- TH
StandardsUL 508 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140
Electromagnetic Emissionclass B IEC 55011
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1805012EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1805012EN
