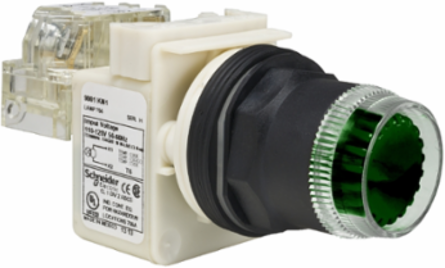

Schneider Electric 9001SK1L1G Harmony 9001SK Illuminated Push Button 30 mm Green Spring Return 110-120V
- MPN: 9001SK1L1G
- UPC: 785901820932
- PPN: SCH-9001SK1L1G
CAD
$216.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony 9001SK, modular illuminated flush green push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Light Block Supply
- via transformer 120 V AC 50/60 Hz, via integral transformer
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Bulb Base
- BA 9s
- Device Short Name
- 9001SK
- Mounting Diameter
- 30 mm
- Operator Profile
- flush
- Product Or Component Type
- head for illuminated push-button
- Returnability
- Yes
- Supply Frequency
- 50...60 Hz
- Type Of Operator
- spring return
- Pep Code
- ENVPEP2503027EN
- Cap/Operator Or Lens Colour
- green
- Package Weight(Lbs)
- 186.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCE, UL listed file E42259 CCN NKCR, CSA LR24590 class 3211 03
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialplastic
Contacts Type And Compositionwithout contact block
Light Sourceincandescent bulb
Operator Additional Informationplastic guard
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony 9001SK
Shape Of Signaling Unit Headoctagonal
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage110...120 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035
Environment Attributes Main
- Ip Degree Of Protection
- IP64, IP65/IP66
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/4X/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- head for illuminated push-button
Range Of ProductHarmony 9001SK
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
