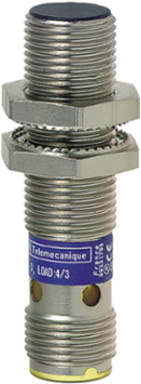

Telemecanique Sensors XS1N12PC410D inductive sensor XS1 M12, L48mm, brass, Sn2mm, 12..24VDC, M12
- MPN: XS1N12PC410D
- PPN: TES-XS1N12PC410D
CAD
$143.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a brass case and a M12 connector. It has a sensing distance of 2mm Four-wire , DC supply, 12V to 24V, NO + NC function, PNP solid-state output.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS1
- Size
- 50 mm
- Ip Degree Of Protection
- IP69K DIN 40050 || IP65 IEC 60529 || IP67
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO + 1 NC
Range Of ProductTelemecanique Inductive proximity sensors XS
Materialmetal
Wiring Technique4-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance2 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M12
Device Applicationmobile equipment
Complementary
- Current Consumption
- 0...10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Net Weight
- 0.02 kg
- Thread Type
- M12 x 1
- Maximum Delay Recovery
- 0.1 ms
- Service Life
- 20 year(s)
- Safety Reliability Data
- MTTFd = 1810 years || PFHd = 62.9E-9 1/h || SFF = 92 % || DC = 74 % with appropriate safety controller
- Enclosure Material
- nickel plated brass
- Safety Level
- SIL 2 EN/IEC 61508 || PL = d EN/ISO 13849-1 || SILCL 2 IEC 62061
Maximum Delay Response0.1 ms
Operating Zone0-1.6 mm
Threaded Length31 mm
Length50 mm
Switching Frequency<= 5000 Hz
Differential Travel1...15% of Sr
Maximum Delay First Up5 ms
Supply Voltage Limits9-36 V DC
Detection Facefrontal
Front MaterialPPS
Environment
- Product Certifications
- E2 || CSA || TÜV || UL
- Standards
- IEC 62061 || EN/ISO 13849-1
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
