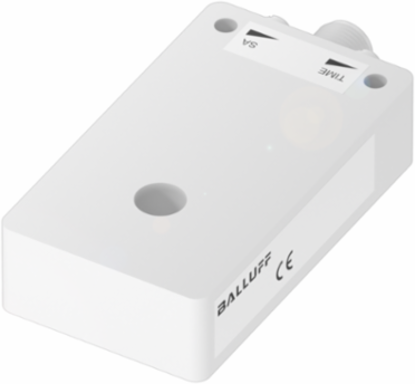

Balluff BES IKV-010.23-G-Z-S4 Inductive Ring and Tube Sensor 80 x 45 x 20 mm, PNP NO, IP65
Balluff BES IKV-010.23-G-Z-S4 Inductive Ring and Tube Sensor 80 x 45 x 20 mm, PNP NO, IP65
- MPN: BES IKV-010.23-G-Z-S4
- PPN: BAL-BES02TT
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$693.67/ EA
Description
The Balluff inductive ring sensor is engineered for precision and reliability in a variety of industrial applications. With a compact design measuring 80 x 45 x 20 mm, this sensor operates effectively within an ambient temperature range of -25 to 70 °C, making it suitable for challenging environments. Featuring a PNP normally open output and an IP65 rating for dust and water resistance, it ensures robust performance even in harsh conditions. The sensor is equipped with a 4-pin M12x1 male connector for easy integration, and its sensing surface is crafted from durable plastic, allowing it to detect targets as small as 2 mm in diameter. This product is CE and WEEE compliant, reflecting its adherence to international safety and environmental standards.
Specifications
Specifications
- Country of Origin
- Germany
- Style
- block style
- Target size min.
- Ball D = 2 mm
- Housing material
- Plastic
- Connection
- Connector, M12x1-Male, 4-pin
- Ambient temperature
- -25...70 °C
- Approval/Conformity
- CE; WEEE
Dimension80 x 45 x 20 mm
Pass-through10.0 mm
Switching outputPNP Normally open (NO)
Material sensing surfacePlastic
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP65
