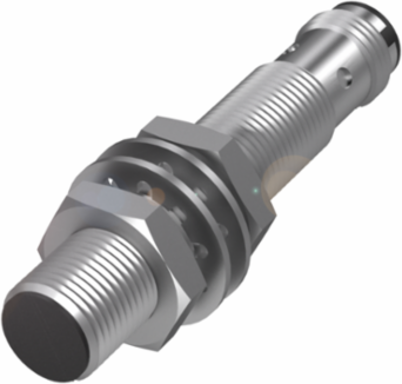

Inductive Sensor, PNP Normally Open, 4 mm Range, IP68, Ø 12 x 65 mm
Balluff

Balluff BES M12MI-PSC40B-S04G Inductive Sensor, PNP Normally Open, 4 mm Range, IP68, Ø 12 x 65 mm

  • MPN: BES M12MI-PSC40B-S04G
  • PPN: BAL-BES0068

CAD

$63.36

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Experience reliable performance with the inductive standard sensors designed for automation and control applications. These sensors feature a robust brass housing that is nickel-free coated, ensuring durability in various environments. With a switching output of PNP Normally Open (NO) and an impressive switching frequency of 2500 Hz, they are ideal for flush mounting and can operate efficiently in temperatures ranging from -25 to 70 °C. The IP68 rating guarantees protection against dust and water, making them suitable for demanding industrial conditions. Equipped with a 3-pin M12x1 male connector, these sensors provide seamless integration into your systems, ensuring optimal functionality and reliability in your automation processes.

Documentation & Downloads

Specifications

Additional

Switching Output
PNP Normally Open (NO)
Switching Frequency
2500 Hz
Ambient Temperature
-25...70 C
Rated Operating Distance
4 mm
Hysteresis Max
15 %
Temperature Drift Max
10 %
Rated Operating Current
200 mA
Load Capacitance Max
1 5F
No-load Current Max, Undamped
5.5 mA
Ready Delay Max
35 ms
Ripple Max
15 %
Dimension
Ø 12 x 65 mm
Tightening Torque
10 Nm
Material Sensing Surface
PBT
Connection
Connector, M12x1 Male, 3-pin
Approval/Conformity
CE; UKCA; cULus; WEEE
Operating Voltage10...30 VDC
Range4 mm
Assured Operating Distance3.2 mm
Real Switching Distance4 mm
Repeat Accuracy Max5 %
Tolerance Sr10 %
Rated Short Circuit Current100 A
No-load Current Max, Damped10 mA
Voltage Drop Static Max1.5 V
Residual Current Max10 A
Output Resistance33 kOhm
InstallationFlush mounting
Housing MaterialBrass, Nickel-free coated
IP RatingIP68
Electrical Connection FeaturesPolarity reversal protected, Protection against device mix-ups, Short-circuit protection
Country of OriginChina
