Balluff BES R01ZC-PSC50B-BZ00,2-GS04-W13 Inductive standard sensors with preferred types - BES048N
- MPN: BES R01ZC-PSC50B-BZ00,2-GS04-W13
- PPN: BAL-BES048N
CAD
$281.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

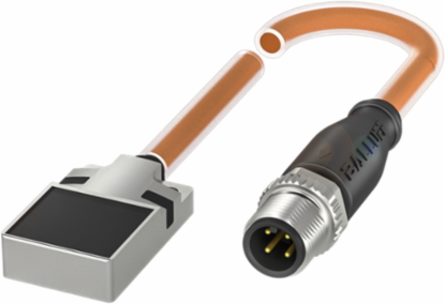

Inductive standard sensors with preferred types - BES048N
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Style
- 32x20x8
- Range
- 5 mm
- Switching frequency
- 100 Hz
- Material sensing surface
- ceramic coated
- Operating voltage Ub
- 10...30 VDC
- IP rating
- IP67
Dimension32 x 20 x 8 mm
Installationfor flush mounting
Switching outputPNP Normally open (NO)
Housing materialZinc, Die casting, partly coated
ConnectionCable with connector, M12x1-Male, 4-pin, 0.20 m, TPU
Ambient temperature-25...70 °C
Approval/ConformityCE; UKCA; cULus; WEEE
