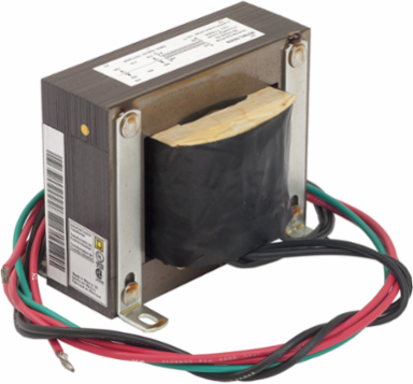

Square D 9070KL300D9 Industrial Control Transformer 300 VA 1-Phase 480V Primary 120V Secondary
- MPN: 9070KL300D9
- UPC: 785901020240
- PPN: SCH-9070KL300D9
CAD
$386.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. This Industrial Control transformer, is 1 phase, with a rated voltage of 150 VA. This transformer, has primary voltages of 460/440/480 V and secondary voltages of 120/115/110 V. This product has a temperature rise of 55 °C and a insulated temperautre of 105 °C. This product complys to UL listed, CSA & CE standards. This product comes with a 610 m lead and has screw clamp terminals connections.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- KL
Product Or Component TypeIndustrial Control Transformer
Complementary
- Primary Voltage
- 440 V || 460 V || 480 V
- Temperature Rise
- 80 °C
- Electrical Connection
- screw clamp terminals
- Rated Power In Va
- 300 VA
Secondary Voltage120 V || 115 V || 110 V
Connector Typelead 610 m
Network Number Of Phases1 phase
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CE || UL listed || CSA
- Insulation Temperature
- 130 °C
Nema Degree Of Protectionnot rated (open device)
