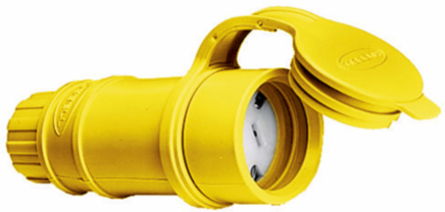

Hubbell Wiring Device-Kellems HBL15W47 Elasto-Grip Watertight Female Connector, 2-Pole 3-Wire, 15A 125V
- MPN: HBL15W47
- UPC: 783585013022
- PPN: HBL-HBL15W47
- UNSPSC: 39121421
CAD
$73.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Female Connector Body, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 125V, 15A 5-15R, Yellow, Single Pack.
Features
- Thermoplastic elastomer housing
- Integral weatherproofing shroud seals connection between plug and connector
- Nylon compression nut keeps water and dust from getting into the body around the cord
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Dimensions
- 4.03 in x 1.76 in x 4.03 in
- Horsepower - Maximum
- 0.50
- Length
- 4.03 in
- Standards - RoHS Compliance Status
- CM
- Application
- Industrial/Commercial
- Environmental Conditions
- Watertight
- NEMA Rating
- 5-15R
- Size
- 4.03 in x 1.76 in x 4.03 in
- Standard
- CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Type
- Connector Body
- Voltage Rating Description
- 125 V
- Width
- 1.76 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Phase
- Single Phase
- Wire Size
- #18 AWG to #12 AWG
- Description - Invoice
- ELASTOGRIP W/T CONN, 15A 125V, 5-15R
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A04A010
- Material - Mounting Hardware
- Cord Mounted
- Series
- Elastogrip Series
- BOX SIZE
- 5.900x12.400x5.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585013022
- Case - Total Units
- 40 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585013021
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating15 A
Height4.03 in
Industry Standard(s)CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
PerformanceElectrical: Current Interrupting: Certified for current interrupting at full rated current;Dielectric Voltage: Withstands 2,000V minimum;Mechanical: Product Identification:Terminal Accommodation: #18-#12 AWG. Stranded copper wire only. Terminal Identification: Terminals identified in accordance with UL 498 and CSA;Environmental: Flammability UL 94 HB or better;IP Suitability: IP55;Operating Temperatures: Maximum continuous 75°C;minimum -40°C (w/o impact)
Amperage Rating15 A
Conductor Range#18 AWG to #12 AWG
InsulationInsulated Body
Number of Poles2-Pole
Special FeaturesWatertight
Temperature RatingMax Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage Rating125 VAC
Weight0.35 lb.
ConnectivityScrew Terminals
Display SizeStandard
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleStandard
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number15W47
Cord Range0.250"-0.655" (6.4-16.6)
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.200 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight17.140 lb.
Lowest Level UOMEach
Pallet Height43.200 in
Pallet Weight505.500 lb.
NAICS Code335931A102
